BA541-10-02-0L-01

Name: BA541-10-02-0L-01
Brand: STASTO
SKU: BA541-10-02-0L-01
Price: 999999.0 RON
Availability: InStock

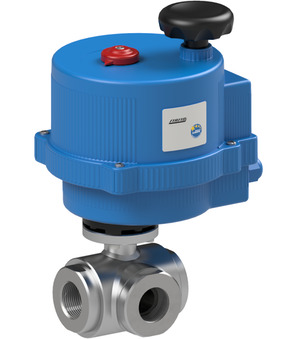

Ball valve with electrical actuator; 3-way-type; Sealing on three ports; Body 1.4404 Polished, Ball 1.4404; Seals PTFE/FKM; Full bore; Medium temperature 0...+100°C; G 1"; DN 25mm; Pressure range 0...40bar; Length 102mm; Operating time 16s; Voltage 24VAC/DC; Ball T; Metal; 3 Positions 0°-90°-180°; Flow path 02

Intrastat No.: 84818081
Country of origin: Italy
Weight: 5.89 Kg
Short Itemnumber: BA54110020L01

ball valve with electrical actuator; 3-way-type; sealing on three ports; body AISI 316L polished, ball AISI 316L; seals PTFE/FKM; full bore; medium temperature 0...+100°C; G 1"; DN 25mm; pressure range 0...40bar; length 102mm; operating time 16s; voltage 24VAC/DC; ball T; metal; 3 positions 0°-90°-180°; flow path 02

999.999,00 lei 999999.0 RON 999.999,00 lei

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

BA541-10-B x 1.0

Ball valve made of stainless steel BA541-10-B

Ball valve made of stainless steel Series BA541, BA542; Bare shaft; 3-way-type; Female thread; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FKM; Sealing on three ports; Medium temperature -20...+170°C; G 1"; Nominal diameter 25mm; Pressure range 0…64bar; Length 102mm; Ball T; Flange ISO5211 F05; Square 14mm

Add to Cart

VB030M-0E8-Q14-01 x 1.0

VB030M-0E8-Q14-01

Electrical actuator; Metal; For a maximum of 100 operations a day; Limit switch-off is wired; 3 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 30Nm; Operating time 16s; Flange ISO5211 F03/F05-star 14mm; Voltage 24VAC/DC; Protection class IP68; 3 Positions 0°-90°-180°

Add to Cart
