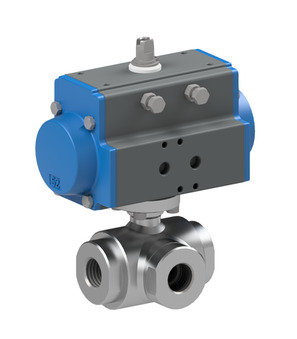

Ball valve made of stainless steel BA355-10-2S5

Ball valve made of stainless steel BA355-10-2S5

Ball valve with pneumatic actuator Series BA355; 3-way-type; Sealing on three ports; Body 1.4404 Polished; Ball 1.4404; Seals PTFE-metal reinforced/FKM; Single acting actuator; Full bore; Control pressure 6...8bar; Medium temperature -20...+200°C; G 1"; Nominal diameter 25mm; Pressure range 0…64bar; Length 102mm; Actuator PAS0855; Ball T; Flow path 02

Intrastat No.: 84818081
Country of origin: Italy
Weight: 8.078 Kg
Short Itemnumber: BA355102S5
https://www.stasto.ro/web/image/product.template/179848/image_1920?unique=2a86bbc

ball valve with pneumatic actuator series BA355; 3-way-type; sealing on three ports; body AISI 316L polished; ball AISI 316L; seals PTFE-metal reinforced/FKM; single acting actuator; full bore; control pressure 6...8bar; medium temperature -20...+200°C; G 1"; nominal diameter 25mm; pressure range 0…64bar; length 102mm; actuator PAS0855; ball T; flow path 02

5.423,30 lei 5423.3 RON 5.423,30 lei

Not Available For Sale

  • Female thread
  • DN
  • Length
  • Ball
  • Pressure range
  • Pressure range
  • Actuator

This combination does not exist.

Availability:
Contact Us

Share

dimension
Female thread G 1"
DN 25 mm
Length 102 mm
Designs
Ball T
pressure
Pressure range 0...40 bar, 0...64 bar
characteristics
Actuator PAS1005
BA355-10-B
BA355-10-B x 1.0
BA355-10-B
Ball valve made of stainless steel; Bare shaft; 3-way-type; Female thread; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals PTFE-metal reinforced/FKM; Sealing on three ports; Medium temperature -20...+200°C; G 1"; Nominal diameter 25mm; Pressure range 0…64bar; Length 102mm; Ball T; Flange ISO5211 F05; Square 14mm
Add to Cart
Pneumatic actuator PAS0855
PAS0855 x 1.0
Pneumatic actuator PAS0855
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 28,7Nm
Add to Cart
IV/00028/09 x 1.0
IV/00028/09
Bolt; 1.4305; Diameter 30mm; Height of the bolt 59mm; Male square 17mm; Height of the male square 18mm; Female square 14mm; Height of the female square 14mm
