Flanged ball valve with pneumatic actuator Series BA353 Store

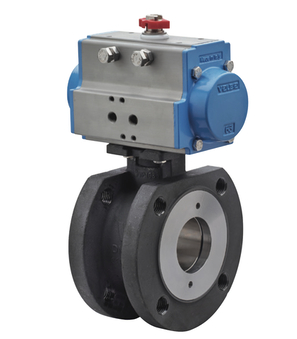

Flanged ball valve with pneumatic actuator BA353-25-S0-A

Name: Flanged ball valve with pneumatic actuator BA353-25-S0-A
Brand: STASTO
SKU: BA353-25-S0-A
Price: 2531.6 RON
Availability: InStock

Flanged ball valve with pneumatic actuator Series BA353; ATEX II 2 G/D; Flange PN16; Body Steel A352-LCB; Ball 1.4301; Seals MPTFE/PTFE/FKM; Single acting actuator ATEX II 2G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+180°C; Pressure range 0...16bar; Nominal diameter 25mm; Length 48mm; Actuator PAS0635

Intrastat No.: 84818081
Country of origin: Italy
Weight: 4.373 Kg
Short Itemnumber:BA35325S0A

flanged ball valve with pneumatic actuator series BA353; ATEX II 2 G/D; flange PN16; body steel A352-LCB; ball AISI 304; seals MPTFE/PTFE/FKM; single acting actuator ATEX II 2G/D c T6; control pressure 5,5...8bar; medium temperature -20...+180°C; pressure range 0...16bar; nominal diameter 25mm; length 48mm; actuator PAS0635

2.531,60 lei 2531.6 RON 2.531,60 lei

DN
- 25 mm
Length
- 48 mm
Design
- ATEX
Actuator
- PAS0635

This combination does not exist.

Availability:

Adaugă în coș

Specifications
Spare Parts

dimension
DN	25 mm
Length	48 mm
design
Design	ATEX
characteristics
Actuator	PAS0635

BA353-25-B-A x 1.0

BA353-25-B-A

Flanged ball valve; ATEX II 2G/D c T3; Bare shaft; Flange PN16; Full bore; Body Steel; Ball 1.4301; Seals MPTFE/PTFE/FKM; Pressure range 0...16bar; Medium temperature -20...+180°C; Nominal diameter 25mm; Length 48mm; Flange ISO5211 F03; Square 9mm

Add to Cart

PAS0635 x 1.0

Pneumatic actuator PAS0635

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 10,6Nm

Add to Cart
