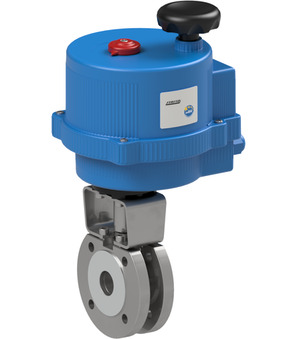

Flanged ball valve with electrical actuator BA295-40-0L

Name: Flanged ball valve with electrical actuator BA295-40-0L
Brand: STASTO
SKU: BA295-40-0L
Price: 6123.6 RON
Availability: InStock

flanged ball valve with electrical actuator; flange PN16; body, ball AISI 316; seals PTFE/Carbographite; with o-ring from HNBR; medium temperature -30...+50°C; DN 40mm; pressure range 0-16bar; length 63,5mm; operating time 9s; voltage 24VAC/DC

Intrastat No.: 84818081
Country of origin: Italy
Weight: 7.92 Kg
Short Itemnumber: BA295400L

6.123,60 lei 6123.6 RON 6.123,60 lei

DN
- 40 mm
Length
- 63,5 mm
Voltage
- 24VAC/DC
Pressure range
- 0...16 bar
Actuator
- VB060L
Operating time
- 9 s

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	40 mm
Length	63,5 mm
Electrical key figures
Voltage	24VAC/DC
pressure
Pressure range	0...16 bar
characteristics
Actuator	VB060L
Operating time	9 s

BA295-40-L x 1.0

BA295-40-L

flanged ball valve; flange PN16, full bore; body, ball AISI 316; seals PTFE/Carbographite; with o-ring from HNBR; pressure range 0...16bar; medium temperature -30...+50°C; nominal diameter 40mm; length 63,5mm

Add to Cart

VB060-L x 1.0

Electrical actuator VB060-L

Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 60Nm; Operating time 9s; Flange ISO5211 F05/F07-Stern 14 mm; Voltage 24VAC/DC; Protection class IP67

Add to Cart

RI3002 x 1.0
