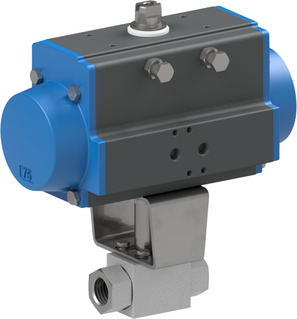

Ball valve with pneumatic actuator BA268-114-S0

Ball valve with pneumatic actuator BA268-114-S0

Ball valve with pneumatic actuator Series BA268; Female thread; Body Zinc plated steel; Ball Steel; Seals POM/EPDM-Perox; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+100°C; For liquids; G 11/4"; Nominal diameter 25mm; Pressure range 0...350bar; Length 120mm; Actuator PAS1255

Intrastat No.: 84818081
Country of origin: Italy
Weight: 16.76 Kg
Short Itemnumber: BA268114S0
https://www.stasto.ro/web/image/product.template/152084/image_1920?unique=bbc91d7

ball valve with pneumatic actuator series BA268; female thread; body zinc plated steel; ball steel; seals POM/EPDM-Perox; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+100°C; for liquids; G 11/4"; nominal diameter 25mm; pressure range 0...350bar; length 120mm; actuator PAS1255

4.542,60 lei 4542.6 RON 4.542,60 lei

Not Available For Sale

  • Female thread
  • DN
  • Length
  • Pressure range
  • Actuator

This combination does not exist.

Availability:
Contact Us

Share

dimension
Female thread G 1 1/4"
DN 25 mm
Length 120 mm
pressure
Pressure range 0...350 bar
characteristics
Actuator PAS1255
BA268-114-B x 1.0
High pressure ball valve BA268-114-B
High pressure ball valve Series BA268-B; Female thread; Drilled for mounting an actuator; Body Zinc plated steel; Ball Steel; Seals POM/EPDM; Medium temperature -20...+100°C; G 11/4"; Nominal diameter 25mm; Pressure range 0...350bar; Length 120mm; Flange ISO5211 F05; Square 14mm
Add to Cart
Pneumatic actuator PAS1255
PAS1255 x 1.0
Pneumatic actuator PAS1255
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 125mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 88,1Nm
Add to Cart
A4/338/99 x 1.0
A4/338/99
Bolt; 1.4305; Diameter 25mm; Height of the bolt 54mm; Male square 14mm; Height of the male square 15mm; Female square 14mm; Height of the female square 15mm
