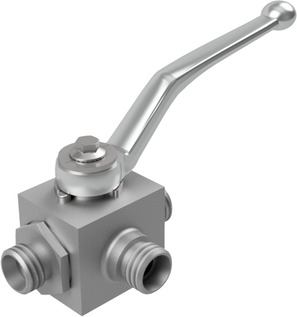

High pressure ball valve Series BA236, BA646; 3-way-type; Sealing on two sides; Pressure inlet just in front; Male thread According to ISO 8434-1 (DIN 2353); Body Zinc plated steel; Ball Steel; Seals POM/NBR; Medium temperature -20...+100°C; For liquids; Connection 38S/M52x2; Nominal diameter 25mm; Pressure range 0...315bar; Length 124mm; Ball L
Country of origin: Germany
Weight: 2.8 Kg
Short Itemnumber: BA23638SL
high pressure ball valve series BA236, BA646; 3-way-type; sealing on two sides; pressure inlet just in front; male thread according to ISO 8434-1 (DIN 2353); body zinc plated steel; ball steel; seals POM/NBR; medium temperature -20...+100°C; for liquids; connection 38S/M52x2; nominal diameter 25mm; pressure range 0...315bar; length 124mm; ball L
Technical specifications
| Pressure range | 0...315 bar |
|---|---|
| Connection | 38S/M52x2 |
| DN | 25 mm |
| Length | 124 mm |
| Pressure range | 0...315 bar |
| Connection | 38S/M52x2 |
| DN | 25 mm |
| Length | 124 mm |
| Ball | L |
| Male thread | M52x2 |
| Type | 38S |
BA236-38S-L
