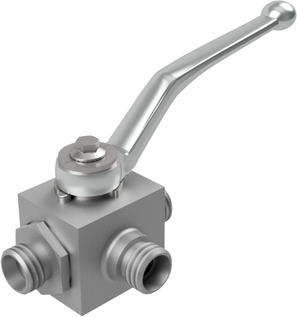

High pressure ball valve BA236-22L-L
High pressure ball valve Series BA236, BA646; 3-way-type; Sealing on two sides; Pressure inlet just in front; Male thread According to ISO 8434-1 (DIN 2353); Body Zinc plated steel; Ball Steel; Seals POM/NBR; Medium temperature -20...+100°C; For liquids; Connection 22L/M30x2; Nominal diameter 20mm; Pressure range 0...315bar; Length 101mm; Ball L
Country of origin: Germany
Weight: 1.5 Kg
Short Itemnumber:BA23622LL
high pressure ball valve series BA236, BA646; 3-way-type; sealing on two sides; pressure inlet just in front; male thread according to ISO 8434-1 (DIN 2353); body zinc plated steel; ball steel; seals POM/NBR; medium temperature -20...+100°C; for liquids; connection 22L/M30x2; nominal diameter 20mm; pressure range 0...315bar; length 101mm; ball L
| dimension | |
|---|---|
| Male thread | M30x2 |
| DN | 20 mm |
| Length | 101 mm |
| Designs | |
| Type | 22L |
| Ball | L |
| pressure | |
| Pressure range | 0...315 bar |
