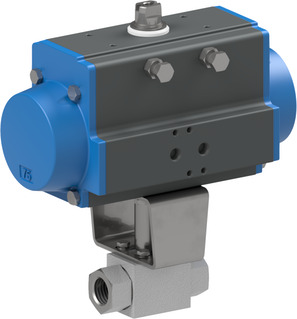

Ball valve with pneumatic actuator BA234-34-S0

Ball valve with pneumatic actuator BA234-34-S0

ball valve with pneumatic actuator series BA234; female thread; body, ball AISI 316Ti/AISI 316L; seals POM/NBR; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+100°C; for liquids; G 3/4"; nominal diameter 20mm; pressure range 0...350bar; length 95mm; actuator PAS1255

Hochdruckkugelhahn Serie BA234-S0
Hochdruckkugelhahn Serie BA234-S0
Intrastat No.: 84818081
Country of origin: Italy
Weight: 16.01 Kg
Short Itemnumber: BA23434S0
https://www.stasto.ro/web/image/product.template/237933/image_1920?unique=5dea311

ball valve with pneumatic actuator series BA234; female thread; body, ball AISI 316Ti/AISI 316L; seals POM/NBR; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+100°C; for liquids; G 3/4"; nominal diameter 20mm; pressure range 0...350bar; length 95mm; actuator PAS1255

5.485,60 lei 5485.6 RON 5.485,60 lei

Not Available For Sale

excl. tax
  • Female thread
  • DN
  • Length
  • Pressure range

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...350 bar
DN 20 mm
Length 95 mm
Female thread G 3/4"
Documents
Data sheets, drawings and CAD files
Pressure range 0...350 bar
DN 20 mm
Length 95 mm
Female thread G 3/4"

BA234-34-S0

Documents

1 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1
Danish / Dansk
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1
Greek / Ελληνικά
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
Spanish / Español
ZIP

Data Sheets

1
Finnish / Suomi
ZIP

Data Sheets

1
French / Français
ZIP

Data Sheets

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1
Italian / Italiano
ZIP

Data Sheets

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1
Dutch / Nederlands
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1
Romanian / română
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
Swedish / Svenska
ZIP

Data Sheets

1
BA234-34-B x 1.0 Pcs
BA234-34-B
High pressure ball valve; Female thread; Body, Ball 1.4571/1.4404; Seals POM/NBR; Medium temperature -30...+100°C; For liquids; G 3/4"; Nominal diameter 20mm; Pressure range 0...350bar; Length 95mm; Flange ISO5211 F05; Square 14mm
Pneumatic actuator PAS1255
PAS1255 x 1.0 Pcs
Pneumatic actuator PAS1255
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 125mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 88,1Nm
04808007001 x 1.0 Pcs
04808007001
Mounting bridge; Zinc plated steel; F05/F07-F05; Height 60mm
A4/338/99 x 1.0 Pcs
A4/338/99
Bolt; 1.4305; Diameter 25mm; Height of the bolt 54mm; Male square 14mm; Height of the male square 15mm; Female square 14mm; Height of the female square 15mm
