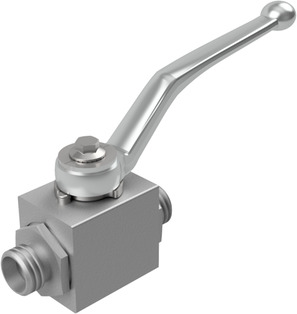

High pressure ball valve BA234-22L-L

High pressure ball valve BA234-22L-L

High pressure ball valve Series BA234; Male thread According to ISO 8434-1 (DIN 2353); Body, Ball 1.4571/1.4404; Seals POM/NBR; For hydraulic liquids; Medium temperature -30...+100°C; Connection 22L/M30x2; Nominal diameter 20mm; Pressure range 0...350bar; Length 101mm

Intrastat No.: 84818081
Country of origin: Germany
Weight: 1.49 Kg
Short Itemnumber: BA23422LL
https://www.stasto.ro/web/image/product.template/137205/image_1920?unique=4de5898

high pressure ball valve series BA234; male thread according to ISO 8434-1 (DIN 2353); body, ball AISI 316Ti/AISI 316L; seals POM/NBR; for hydraulic liquids; medium temperature -30...+100°C; connection 22L/M30x2; nominal diameter 20mm; pressure range 0...350bar; length 101mm

1.653,90 lei 1653.9 RON 1.653,90 lei

Not Available For Sale

  • Male thread
  • DN
  • Length
  • Type
  • Pressure range

This combination does not exist.

Availability:
Contact Us

Share

dimension
Male thread M30x2
DN 20 mm
Length 101 mm
Designs
Type 22L
pressure
Pressure range 0...350 bar
No spare parts are available for this product.
