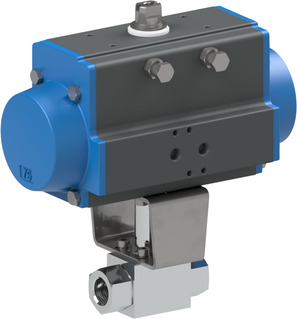

Ball valve with pneumatic actuator BA234-14-D0

Ball valve with pneumatic actuator BA234-14-D0

ball valve with pneumatic actuator series; female thread; body, ball AISI 316Ti/AISI 316L; seals POM/NBR; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+100°C; for liquids; G 1/4"; nominal diameter 6mm; pressure range 0...500bar; length 69mm; actuator PAD063

Intrastat No.: 84818081
Country of origin: Germany
Weight: 2.683 Kg
Short Itemnumber:BA23414D0
https://www.stasto.ro/web/image/product.template/234837/image_1920?unique=bbc91d7

ball valve with pneumatic actuator series; female thread; body, ball AISI 316Ti/AISI 316L; seals POM/NBR; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+100°C; for liquids; G 1/4"; nominal diameter 6mm; pressure range 0...500bar; length 69mm; actuator PAD063

2.807,00 lei 2807.0 RON 2.807,00 lei

Not Available For Sale

  • Valve interface Namur
  • Female thread
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
Female thread G 1/4"
DN 6 mm
Length 69 mm
pressure
Pressure range 0...500 bar

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_High pressure ball valve Series BA234-D0_EN.pdf
Download

ZIP
Datové listy
1
Datový list_kulový kohout - vysokotlaký série BA234-D0_CS.pdf
Download

ZIP
Data Sheets
1
Datablad_Højtrykskugleventil Serie BA234-D0_DA_DK.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Hochdruckkugelhahn Serie BA234-D0_DE.pdf
Download

ZIP
Data Sheets
1
Δελτίο δεδομένων_Σφαιρική βάνα υψηλής πίεσης Σειρά BA234-D0_EL_GR.pdf
Download

ZIP
Data Sheets
1
Ficha técnica_Válvula de bola de alta presión Serie BA234-D0_ES.pdf
Download

ZIP
Data Sheets
1
Tietolehti_Korkeapainekuulaventtiili Sarja BA234-D0_FI.pdf
Download

ZIP
Data Sheets
1
Fiche technique_Vanne à boisseau sphérique haute pression Série BA234-D0_FR.pdf
Download

ZIP
Data Sheets
1
Podatkovni list_Kuglasti ventil za visok tlak Serija BA234-D0_HR.pdf
Download

ZIP
Adatlapok
1
Adatlap_magasnyomású gömbcsap sorozat BA234-D0_HU.pdf
Download

ZIP
Data Sheets
1
Scheda tecnica_Valvola a sfera ad alta pressione Serie BA234-D0_IT.pdf
Download

ZIP
Data Sheets
1
Datablad_Høytrykkskuleventil Serie BA234-D0_NB_NO.pdf
Download

ZIP
Data Sheets
1
Datasheet_Hogedrukkogelafsluiter Serie BA234-D0_NL.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_zawór kulowy wysokociśnieniowy Seria BA234-D0_PL.pdf
Download

ZIP
Data Sheets
1
Fișă de date_Supapă sferică de înaltă presiune serie BA234-D0_RO.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Visokotlačna krogelna pipa serija BA234-D0_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_kuglasti ventil za visok pritisak serije BA234-D0_SRLATIN.pdf
Download

ZIP
Data Sheets
1
Datablad_Högtryckskulventil Serie BA234-D0_SV.pdf
Download
BA234-14-B x 1.0
BA234-14-B
High pressure ball valve; Female thread; Drilled for mounting an actuator; Body, Ball 1.4571/1.4404; Seals POM/NBR; Medium temperature -30...+100°C; For liquids; Flange Bolt circle 36mm, Distance of the mounting holes 18x31,2mm; Square 9mm; G 1/4"; Nominal diameter 6mm; Pressure range 0...500bar; Length 69mm
Add to Cart
Pneumatic actuator PAD063
PAD063 x 1.0
Pneumatic actuator PAD063
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 36Nm
Add to Cart
MBNS0503-30 x 1.0
MBNS0503-30
Mounting bridge; Zinc plated steel; Flange 1 F05; Flange 2 F03 30°; Height 60mm
Add to Cart
A4/338/99 x 1.0
A4/338/99
Bolt; 1.4305; Diameter 25mm; Height of the bolt 54mm; Male square 14mm; Height of the male square 15mm; Female square 14mm; Height of the female square 15mm
