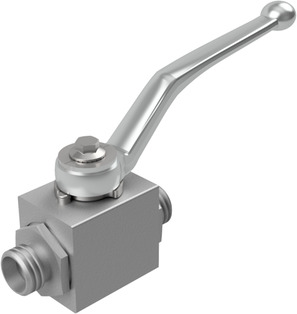

High pressure ball valve BA234-10L-L
High pressure ball valve Series BA234; Male thread According to ISO 8434-1 (DIN 2353); Body, Ball 1.4571/1.4404; Seals POM/NBR; For hydraulic liquids; Medium temperature -30...+100°C; Connection 10L/M16x1,5; Nominal diameter 8mm; Pressure range 0...500bar; Length 74mm
Intrastat No.: 84818081
Country of origin: Germany
Weight: 0.37 Kg
Short Itemnumber: BA23410LL
Country of origin: Germany
Weight: 0.37 Kg
Short Itemnumber: BA23410LL
high pressure ball valve series BA234; male thread according to ISO 8434-1 (DIN 2353); body, ball AISI 316Ti/AISI 316L; seals POM/NBR; for hydraulic liquids; medium temperature -30...+100°C; connection 10L/M16x1,5; nominal diameter 8mm; pressure range 0...500bar; length 74mm
| dimension | |
|---|---|
| Male thread | M16x1,5 |
| DN | 8 mm |
| Length | 74 mm |
| Designs | |
| Type | 10L |
| pressure | |
| Pressure range | 0...500 bar |
No spare parts are available for this product.
