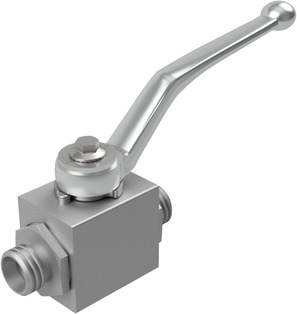

High pressure ball valve Series BA233; Male thread according to ISO 8434-1 (DIN 2353); Body Zinc plated steel; Ball Steel; Seals POM/NBR; Medium temperature -20...+100°C; For liquids; Connection 38S/M52X2; Nominal diameter 25mm; Pressure range 0...350bar; Length 124mm
Country of origin: Germany
Weight: 2.3 Kg
Short Itemnumber: BA23338SL
high pressure ball valve series BA233; male thread according to ISO 8434-1 (DIN 2353); body zinc plated steel; ball steel; seals POM/NBR; medium temperature -20...+100°C; for liquids; connection 38S/M52X2; nominal diameter 25mm; pressure range 0...350bar; length 124mm
Technical specifications
| Pressure range | 0...350 bar |
|---|---|
| Connection | 38S/M52X2 |
| DN | 25 mm |
| Length | 124 mm |
| Pressure range | 0...350 bar |
| Connection | 38S/M52X2 |
| DN | 25 mm |
| Length | 124 mm |
| Male thread | M52x2 |
| Type | 38S |
BA233-38S-L
