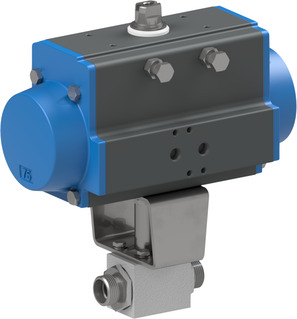

Ball valve with pneumatic actuator BA233-20S-D0-01

Ball valve with pneumatic actuator BA233-20S-D0-01

Ball valve with pneumatic actuator Series BA233; Male thread According to ISO 8434-1 (DIN 2353); Body Zinc plated steel; Ball Steel; Seals POM/NBR; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+100°C; For liquids; Connection 20S/M30x2; Nominal diameter 15mm; Pressure range 0...420bar; Length 90mm; Actuator PAD075

Intrastat No.: 84818081
Country of origin: Italy
Weight: 4.044 Kg
Short Itemnumber: BA23320SD001
https://www.stasto.ro/web/image/product.template/139705/image_1920?unique=bbc91d7

ball valve with pneumatic actuator series BA233; male thread according to ISO 8434-1 (DIN 2353); body zinc plated steel; ball steel; seals POM/NBR; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+100°C; for liquids; connection 20S/M30x2; nominal diameter 15mm; pressure range 0...420bar; length 90mm; actuator PAD075

2.253,70 lei 2253.7 RON 2.253,70 lei

Not Available For Sale

  • Male thread
  • DN
  • Length
  • Type
  • Pressure range
  • Actuator

This combination does not exist.

Availability:
Contact Us

Share

dimension
Male thread M30x2
DN 15 mm
Length 90 mm
Designs
Type 20S
pressure
Pressure range 0...420 bar
characteristics
Actuator PAD075

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
CAD / 3D
1
CADSTEP_BA23320SD001.stp
Download
BA233-20S-B-01 x 1.0
High pressure ball valve BA233-20S-B-01
High pressure ball valve Series BA233; Male thread according to DIN 2353; Drilled for mounting an actuator; Body Zinc plated steel; Ball Steel; Seals POM/NBR; Medium temperature -20...+100°C; Connection 20S/M30x2; Nominal diameter 15mm; Pressure range 0...420bar; Length 90mm; Flange ISO5211 F04; Square 12mm
Add to Cart
Pneumatic actuator PAD075
PAD075 x 1.0
Pneumatic actuator PAD075
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 75mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 66Nm
Add to Cart
ATSV0704 x 1.0
ATSV0704
Mounting bridge; Material Zinc plated steel; Flange 1 F07; Flange 2 F04; Height 60mm
Add to Cart
A4/338/99 x 1.0
A4/338/99
Bolt; 1.4305; Diameter 25mm; Height of the bolt 54mm; Male square 14mm; Height of the male square 15mm; Female square 14mm; Height of the female square 15mm
