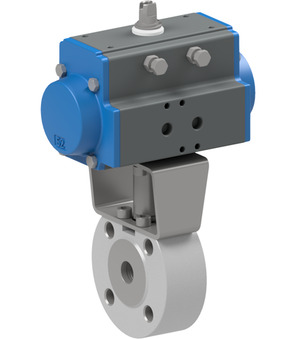

BA196-50-S0

Flanged ball valve with pneumatic actuator; Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Without dead space; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 50mm; Length 82mm; Actuator PAS1405

Intrastat No.: 84818081
Country of origin: Italy
Weight: 21.564 Kg
Short Itemnumber: BA19650S0

flanged ball valve with pneumatic actuator; flange PN16; body, ball AISI 316; seals PTFE/FKM; without dead space; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...16bar; nominal diameter 50mm; length 82mm; actuator PAS1405

999.999,00 lei 999999.0 RON 999.999,00 lei

excl. tax

Brand
- STASTO

This combination does not exist.

Availability:

See availability

Technical specifications

Pressure range	0...16bar
Brand	STASTO

Specifications
Spare Parts

Pressure range	0...16bar
Brand	STASTO

BA196-50-L x 1.0 Pcs

Flanged ball valve BA196-50-L

Flanged ball valve Series BA196-L; Flange PN16, Full bore; Body, Ball 1.4401; Seals PTFE/FKM Without dead space; Pressure range 0...16bar; Medium temperature -20...+160°C; Nominal diameter 50mm; Length 82mm

Pneumatic actuator PAS1255

PAS1255 x 1.0 Pcs

Pneumatic actuator PAS1255

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 125mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 88,1Nm

ATSV1005 x 1.0 Pcs

ATSV1005

Mounting bridge; Material Zinc plated steel; Flange 1 F10; Flange 2 F05; Height 80mm

IV/00055/10 x 1.0 Pcs

IV/00055/10

Bolt; 1.4305; Diameter 28mm; Height of the bolt 100mm; Male square 17mm; Height of the male square 18mm; Two flat 10mm; Two flat height 14mm

Square adapter VK2717

VK2717 x 1.0 Pcs

Square adapter VK2717

Square adapter Series VK; 27X17; Length 27mm; Material Stahl

Accessory Products

EB0X01

Material of case: Plastic

Brand: STASTO

EB0X02

Material of case: Plastic

Brand: STASTO

EB0X04YA

Material of case: Aluminum

Brand: STASTO

EB0X04YA-ULCSA-01

EB0X04YA-ULCSA-01

Material of case: Aluminum

Brand: STASTO

EB0X05

Design: ATEX

Material of case: Plastic

Brand: STASTO

RI4609

Diameter: 125 mm

RI4623

Diameter: 125 mm

RI4651

Diameter: 125 mm
