BA196-32-S0

Name: BA196-32-S0
Brand: STASTO
SKU: BA196-32-S0
Price: 999999.0 RON
Availability: InStock

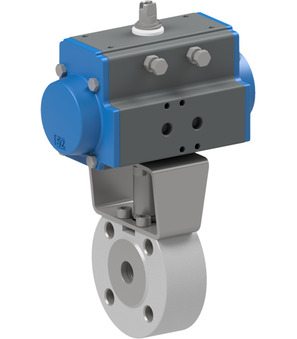

Flanged ball valve with pneumatic actuator; Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Without dead space; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 32mm; Length 54mm; Actuator PAS1005

Intrastat No.: 84818081
Country of origin: Italy
Weight: 10.984 Kg
Short Itemnumber: BA19632S0

flanged ball valve with pneumatic actuator; flange PN16; body, ball AISI 316; seals PTFE/FKM; without dead space; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...16bar; nominal diameter 32mm; length 54mm; actuator PAS1005

999.999,00 lei 999999.0 RON 999.999,00 lei

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

BA196-32-L x 1.0

Flanged ball valve BA196-32-L

Flanged ball valve Series BA196-L; Flange PN16, Full bore; Body, Ball 1.4401; Seals PTFE/FKM Without dead space; Pressure range 0...16bar; Medium temperature -20...+160°C; Nominal diameter 32mm; Length 54mm

Add to Cart

PAS1005 x 1.0

Pneumatic actuator PAS1005

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 42,3Nm

Add to Cart

ATSV0704 x 1.0
