Ball valve with pneumatic actuator Series BA175-D Store

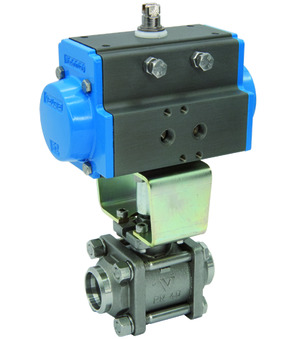

Ball valve with pneumatic actuator BA175-40-D0-A

Name: Ball valve with pneumatic actuator BA175-40-D0-A
Brand: STASTO
SKU: BA175-40-D0-A
Price: 999999.0 RON
Availability: InStock

Ball valve with pneumatic actuator Series BA175-D; ATEX II 2 G/D; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FFKM; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 40mm; Pressure range 0-25bar; Length 116mm; Actuator PAD063

Intrastat No.: 84818081
Country of origin: Italy
Weight: 4.71 Kg
Short Itemnumber: BA17540D0A

ball valve with pneumatic actuator series BA175-D; ATEX II 2 G/D; butt weld ends; body, ball AISI 316; seals PTFE-reinforced/FFKM; single acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 40mm; pressure range 0-25bar; length 116mm; actuator PAD063

999.999,00 lei 999999.0 RON 999.999,00 lei

DN
- 40 mm
Length
- 116 mm
Design
- ATEX
Pressure range
- 0...25 bar
Actuator
- PAD063

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	40 mm
Length	116 mm
design
Design	ATEX
pressure
Pressure range	0...25 bar
characteristics
Actuator	PAD063

BA175-40-L x 1.0

Ball valve made of stainless steel BA175-40-L

Ball valve made of stainless steel Series BA175-L; ATEX II 2 G/D; Full bore; Three-parts type; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FFKM; Medium temperature -20...+160°C; Fire-safe/ATEX-Antistatic design; Nominal diameter 40mm; Pressure range 0-25bar; Length 116mm

Add to Cart

PAD063 x 1.0

Pneumatic actuator PAD063

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 36Nm
