Ball valve with pneumatic actuator Series BA175-S Store

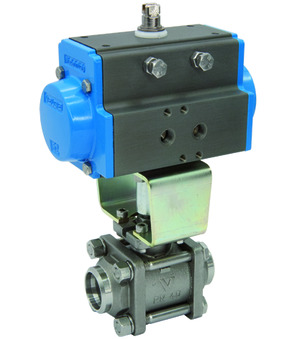

Ball valve with pneumatic actuator BA175-20-S0-A

Name: Ball valve with pneumatic actuator BA175-20-S0-A
Brand: STASTO
SKU: BA175-20-S0-A
Price: 999999.0 RON
Availability: InStock

Ball valve with pneumatic actuator Series BA175-S; ATEX II 2 G/D; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FFKM; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 20mm; Pressure range 0-40bar; Length 76mm; Actuator PAS0635

Intrastat No.: 84818081
Country of origin: Italy
Weight: 3.02 Kg
Short Itemnumber:BA17520S0A

ball valve with pneumatic actuator series BA175-S; ATEX II 2 G/D; butt weld ends; body, ball AISI 316; seals PTFE-reinforced/FFKM; double acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 20mm; pressure range 0-40bar; length 76mm; actuator PAS0635

999.999,00 lei 999999.0 RON 999.999,00 lei

DN
- 20 mm
Length
- 76 mm
Design
- ATEX
Pressure range
- 0...40 bar
Actuator
- PAS0635

This combination does not exist.

Availability:

Adaugă în coș

Specifications
Spare Parts

dimension
DN	20 mm
Length	76 mm
design
Design	ATEX
pressure
Pressure range	0...40 bar
characteristics
Actuator	PAS0635

BA175-20-L x 1.0

Ball valve made of stainless steel BA175-20-L

Ball valve made of stainless steel Series BA175-L; ATEX II 2 G/D; Full bore; Three-parts type; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FFKM; Medium temperature -20...+160°C; Fire-safe/ATEX-Antistatic design; Nominal diameter 20mm; Pressure range 0-40bar; Length 76mm

Add to Cart

PAS0635 x 1.0

Pneumatic actuator PAS0635

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 10,6Nm

Add to Cart

RI3783 x 1.0
