Ball valve with pneumatic actuator Series BA175-D Store

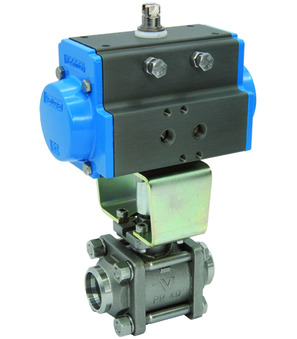

Ball valve with pneumatic actuator BA175-15-D0-A

Name: Ball valve with pneumatic actuator BA175-15-D0-A
Brand: STASTO
SKU: BA175-15-D0-A
Price: 1943.6 RON
Availability: InStock

Ball valve with pneumatic actuator Series BA175-D; ATEX II 2 G/D; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FFKM; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 15mm; Pressure range 0-64bar; Length 65mm; Actuator PAD032

Intrastat No.: 84818081
Country of origin: Italy
Weight: 1.09 Kg
Short Itemnumber: BA17515D0A

ball valve with pneumatic actuator series BA175-D; ATEX II 2 G/D; butt weld ends; body, ball AISI 316; seals PTFE-reinforced/FFKM; single acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 15mm; pressure range 0-64bar; length 65mm; actuator PAD032

1.943,60 lei 1943.6 RON 1.943,60 lei

DN
- 15 mm
Length
- 65 mm
Design
- ATEX
Pressure range
- 0...64 bar
Actuator
- PAD032

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	15 mm
Length	65 mm
design
Design	ATEX
pressure
Pressure range	0...64 bar
characteristics
Actuator	PAD032

BA175-15-L x 1.0

Ball valve made of stainless steel BA175-15-L

Ball valve made of stainless steel Series BA175-L; ATEX II 2 G/D; Full bore; Three-parts type; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FFKM; Medium temperature -20...+160°C; Fire-safe/ATEX-Antistatic design; Nominal diameter 15mm; Pressure range 0-64bar; Length 65mm

Add to Cart

PAD032 x 1.0

Pneumatic actuator PAD032

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 32mm; Flange ISO5211 F03; Female square 9mm; Torque at 5,5bar 8Nm

Add to Cart

RI3789 x 1.0
