Flanged ball valve with pneumatic actuator Series BA160-D0-A Store

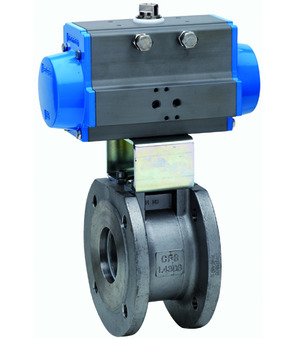

Flanged ball valve with pneumatic actuator BA160-40-D0-A

Name: Flanged ball valve with pneumatic actuator BA160-40-D0-A
Brand: STASTO
SKU: BA160-40-D0-A
Price: 999999.0 RON
Availability: InStock

Flanged ball valve with pneumatic actuator Series BA160-D0-A; ATEX II 2 G/D; Flange PN16; Body, Ball 1.4301; Seals PTFE; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Also suitable for solvents; Nominal diameter 40mm; Length 63,5mm; Actuator PAD075

Intrastat No.: 84818081
Country of origin: Italy
Weight: 7.51 Kg
Short Itemnumber: BA16040D0A

flanged ball valve with pneumatic actuator series BA160-D0-A; ATEX II 2 G/D; flange PN16; body, ball AISI 304; seals PTFE; double acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...16bar; also suitable for solvents; nominal diameter 40mm; length 63,5mm; actuator PAD075

999.999,00 lei 999999.0 RON 999.999,00 lei

DN
- 40 mm
Length
- 63,5 mm
Design
- ATEX
Actuator
- PAD075

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	40 mm
Length	63,5 mm
design
Design	ATEX
characteristics
Actuator	PAD075

BA160-40-L x 1.0

Flanged ball valve BA160-40-L

Flanged ball valve Series BA160-L; ATEX II 2 G/D; Flange PN16, Full bore; Body, Ball 1.4301; Seals PTFE; Pressure range 0...16bar; Medium temperature -20...+160°C; Nominal diameter 40mm; Length 63,5mm

Add to Cart

PAD075 x 1.0

Pneumatic actuator PAD075

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 75mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 66Nm

Add to Cart

RI3031 x 1.0
