Flanged ball valve with pneumatic actuator Series BA160-S0-A Store

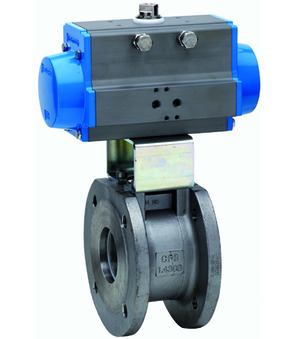

Flanged ball valve with pneumatic actuator BA160-25-S0-A

Name: Flanged ball valve with pneumatic actuator BA160-25-S0-A
Brand: STASTO
SKU: BA160-25-S0-A
Price: 999999.0 RON
Availability: InStock

Flanged ball valve with pneumatic actuator Series BA160-S0-A; ATEX II 2 G/D; Flange PN16; Body, Ball 1.4301; Seals PTFE; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Also suitable for solvents; Nominal diameter 25mm; Length 46mm; Actuator PAS1155

Intrastat No.: 84818081
Country of origin: Italy
Weight: 14.4 Kg
Short Itemnumber:BA16025S0A

flanged ball valve with pneumatic actuator series BA160-S0-A; ATEX II 2 G/D; flange PN16; body, ball AISI 304; seals PTFE; single acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...16bar; also suitable for solvents; nominal diameter 25mm; length 46mm; actuator PAS1155

999.999,00 lei 999999.0 RON 999.999,00 lei

DN
- 25 mm
Length
- 46 mm
Design
- ATEX
Actuator
- PAS1155

This combination does not exist.

Availability:

Adaugă în coș

Specifications
Spare Parts

dimension
DN	25 mm
Length	46 mm
design
Design	ATEX
characteristics
Actuator	PAS1155

BA160-25-L x 1.0

Flanged ball valve BA160-25-L

Flanged ball valve Series BA160-L; ATEX II 2 G/D; Flange PN16, Full bore; Body, Ball 1.4301; Seals PTFE; Pressure range 0...16bar; Medium temperature -20...+160°C; Nominal diameter 25mm; Length 46mm

Add to Cart

PAS1155 x 1.0

Pneumatic actuator PAS1155

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 115mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 71,1Nm

Add to Cart

IV/00008/08 x 1.0
