Flanged ball valve with pneumatic actuator Series BA160-D0-A Store

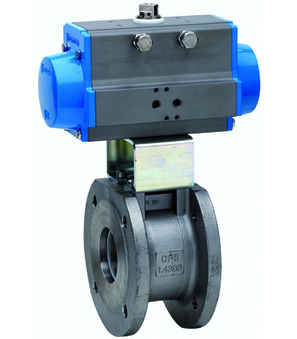

Flanged ball valve with pneumatic actuator BA160-15-D0-A

Name: Flanged ball valve with pneumatic actuator BA160-15-D0-A
Brand: STASTO
SKU: BA160-15-D0-A
Price: 999999.0 RON
Availability: InStock

Flanged ball valve with pneumatic actuator Series BA160-D0-A; ATEX II 2 G/D; Flange PN16; Body, Ball 1.4301; Seals PTFE; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Also suitable for solvents; Nominal diameter 15mm; Length 35mm; Actuator PAD063

Intrastat No.: 84818081
Country of origin: Italy
Weight: 3.29 Kg
Short Itemnumber: BA16015D0A

flanged ball valve with pneumatic actuator series BA160-D0-A; ATEX II 2 G/D; flange PN16; body, ball AISI 304; seals PTFE; double acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...16bar; also suitable for solvents; nominal diameter 15mm; length 35mm; actuator PAD063

999.999,00 lei 999999.0 RON 999.999,00 lei

DN
- 15 mm
Length
- 35 mm
Design
- ATEX
Actuator
- PAD063

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	15 mm
Length	35 mm
design
Design	ATEX
characteristics
Actuator	PAD063

BA160-15-L x 1.0

Flanged ball valve BA160-15-L

Flanged ball valve Series BA160-L; ATEX II 2 G/D; Flange PN16, Full bore; Body, Ball 1.4301; Seals PTFE; Pressure range 0...16bar; Medium temperature -20...+160°C; Nominal diameter 15mm; Length 35mm

Add to Cart

PAD063 x 1.0

Pneumatic actuator PAD063

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 36Nm

Add to Cart

RI3780 x 1.0
