BA144-40-S0

BA144-40-S0

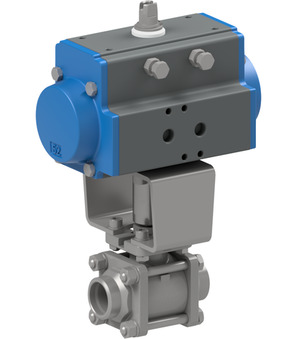

ball valve with pneumatic actuator; butt weld ends; body, ball AISI 316; seals PTFE-reinforced/EPDM; single acting actuator; control pressure 5,5...8bar; medium temperature -30...+160°C; nominal diameter 40mm; pressure range 0...25bar; length 116mm; actuator PAS0855

Intrastat No.: 84818081
Country of origin: Italy
Weight: 7.81 Kg
Short Itemnumber: BA14440S0
https://www.stasto.ro/web/image/product.template/224158/image_1920?unique=3970b0b

ball valve with pneumatic actuator; butt weld ends; body, ball AISI 316; seals PTFE-reinforced/EPDM; single acting actuator; control pressure 5,5...8bar; medium temperature -30...+160°C; nominal diameter 40mm; pressure range 0...25bar; length 116mm; actuator PAS0855

4.093,30 lei 4093.3 RON 4.093,30 lei

Not Available For Sale

  • Butt weld ends
  • DN
  • Length
  • Pressure range
  • Actuator

This combination does not exist.

Availability:
Contact Us

Share

dimension
Butt weld ends 40 mm
DN 40 mm
Length 116 mm
pressure
Pressure range 0...25 bar
characteristics
Actuator PAS0855
BA144-40-L
BA144-40-L x 1.0
BA144-40-L
Ball valve made of stainless steel; Full bore; Three-parts type; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/EPDM; Medium temperature -30...+160°C; Nominal diameter 40mm; Pressure range 0...25bar; Length 116mm
Add to Cart
Pneumatic actuator PAS0855
PAS0855 x 1.0
Pneumatic actuator PAS0855
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 28,7Nm
Add to Cart
