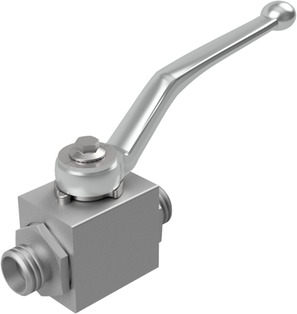

High pressure ball valve BA102-6L-L
High pressure ball valve Series BA102; Male thread according to ISO 8434-1 (DIN 2353); Body, Ball 1.4571/1.4404; Seals POM/FKM; Medium temperature -20...+100°C; For liquids; Connection 6L/M12x1,5; Nominal diameter 5mm; Pressure range 0...500bar; Length 67mm
Intrastat No.: 84818081
Country of origin: Germany
Weight: 0.36 Kg
Short Itemnumber: BA1026LL
Country of origin: Germany
Weight: 0.36 Kg
Short Itemnumber: BA1026LL
high pressure ball valve series BA102; male thread according to ISO 8434-1 (DIN 2353); body, ball AISI 316Ti/AISI 316L; seals POM/FKM; medium temperature -20...+100°C; for liquids; connection 6L/M12x1,5; nominal diameter 5mm; pressure range 0...500bar; length 67mm
| dimension | |
|---|---|
| Male thread | M12x1,5 |
| DN | 5 mm |
| Length | 67 mm |
| Designs | |
| Type | 6L |
| pressure | |
| Pressure range | 0...500 bar |
No spare parts are available for this product.
