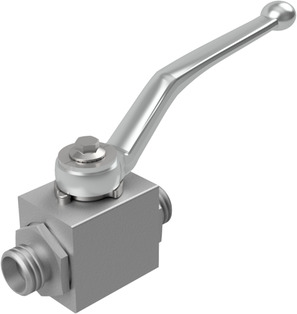

High pressure ball valve BA102-28L-L

High pressure ball valve BA102-28L-L

High pressure ball valve Series BA102; Male thread according to ISO 8434-1 (DIN 2353); Body, Ball 1.4571/1.4404; Seals POM/FKM; Medium temperature -20...+100°C; For liquids; Connection 28L/M36x2; Nominal diameter 25mm; Pressure range 0…350bar; Length 108mm

Intrastat No.: 84818081
Country of origin: Germany
Weight: 2.0 Kg
Short Itemnumber: BA10228LL
https://www.stasto.ro/web/image/product.template/142500/image_1920?unique=4de5898

high pressure ball valve series BA102; male thread according to ISO 8434-1 (DIN 2353); body, ball AISI 316Ti/AISI 316L; seals POM/FKM; medium temperature -20...+100°C; for liquids; connection 28L/M36x2; nominal diameter 25mm; pressure range 0…350bar; length 108mm

2.280,20 lei 2280.2 RON 2.280,20 lei

Not Available For Sale

  • Male thread
  • DN
  • Length
  • Type
  • Pressure range

This combination does not exist.

Availability:
Contact Us

Share

dimension
Male thread M36x2
DN 25 mm
Length 108 mm
Designs
Type 28L
pressure
Pressure range 0...350 bar
No spare parts are available for this product.
