Ball valve with pneumatic actuator BA102-114-S0

Price.

6.417,30 lei
Ball valve with pneumatic actuator Series BA102-S0 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Ball valves for high pressure - pneumatically operated
  5. Ball valve with pneumatic actuator Series BA102-S0
  6. BA102-114-S0
Ball valve with pneumatic actuator BA102-114-S0
BA102-10-S0-ABS53-C001-03-C002-31-LVCV20-2
BA102-10-S0-ABS53-C001-03-C002-31-LVCV20-2
6.786,60 lei
6.786,60 lei
BA102-10-D0-ABS51-C001-03-C002-31-LVCV20-2
BA102-10-D0-ABS51-C001-03-C002-31-LVCV20-2
4.912,30 lei
4.912,30 lei

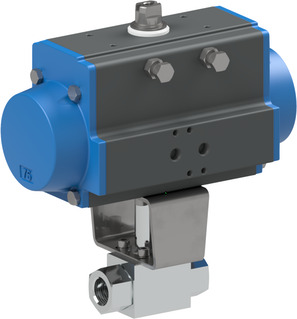

Ball valve with pneumatic actuator BA102-114-S0

Ball valve with pneumatic actuator Series BA102; Female thread; Body, Ball 1.4571/1.4404; Seals POM/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+100°C; For liquids; G 11/4"; Nominal diameter 25mm; Pressure range 0...350bar; Length 120mm; Actuator PAS1255

Intrastat No.: 84818081
Country of origin: Italy
Weight: 16.76 Kg
Short Itemnumber:BA102114S0
https://www.stasto.ro/web/image/product.template/139646/image_1920?unique=bbc91d7

ball valve with pneumatic actuator series BA102; female thread; body, ball AISI 316Ti/AISI 316L; seals POM/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+100°C; for liquids; G 11/4"; nominal diameter 25mm; pressure range 0...350bar; length 120mm; actuator PAS1255

6.417,30 lei 6417.3 RON 6.417,30 lei

Not Available For Sale

  • Valve interface Namur
  • Female thread
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
Female thread G 1 1/4"
DN 25 mm
Length 120 mm
pressure
Pressure range 0...350 bar
characteristics
Actuator PAS1255

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Ball valve with pneumatic actuator Series BA102-S0_EN.pdf
Download

ZIP
Datové listy
1
Datový list_kulový kohout s otočným pneumatickým pohonem série BA102-S0_CS.pdf
Download

ZIP
Data Sheets
1
Datablad_Kugleventil med pneumatisk drejedrev Serie BA102-S0_DA_DK.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Kugelhahn mit Druckluftdrehantrieb Serie BA102-S0_DE.pdf
Download

ZIP
Data Sheets
1
Δελτίο δεδομένων_Σφαιρική βάνα με πνευματικό περιστροφικό ενεργοποιητή Σειρά BA102-S0_EL_GR.pdf
Download

ZIP
Data Sheets
1
Ficha técnica_Válvula de bola con actuador neumático rotativo Serie BA102-S0_ES.pdf
Download

ZIP
Data Sheets
1
Tietolehti_Palloventtiili paineilmatoimisella kääntötoimilaitteella Sarja BA102-S0_FI.pdf
Download

ZIP
Data Sheets
1
Fiche technique_Vanne à boisseau sphérique avec actionneur pneumatique rotatif Série BA102-S0_FR.pdf
Download

ZIP
Data Sheets
1
Podatkovni list_Kuglasti ventil s pneumatskim rotacijskim pogonom Serija BA102-S0_HR.pdf
Download

ZIP
Adatlapok
1
Adatlap_pneumatikus forgatóhengerrel működtetett gömbcsap sorozat BA102-S0_HU.pdf
Download

ZIP
Data Sheets
1
Scheda tecnica_Valvola a sfera con attuatore pneumatico rotativo Serie BA102-S0_IT.pdf
Download

ZIP
Data Sheets
1
Datablad_Kuleventil med pneumatisk roterende aktuator Serie BA102-S0_NB_NO.pdf
Download

ZIP
Data Sheets
1
Datasheet_Kogelkraan met pneumatische draaiaandrijving Serie BA102-S0_NL.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_zawór kulowy z napędem pneumatycznym Seria BA102-S0_PL.pdf
Download

ZIP
Data Sheets
1
Fișă de date_Robinet cu bilă cu actuator rotativ pneumatic serie BA102-S0_RO.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Krogelna pipa s pnevmatskim rotacijskim pogonom serija BA102-S0_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_kuglasti ventil sa pneumatskim aktuatorom serije BA102-S0_SRLATIN.pdf
Download

ZIP
Data Sheets
1
Datablad_Kulventil med pneumatiskt vriddon Serie BA102-S0_SV.pdf
Download
BA102-114-B x 1.0
High pressure ball valve BA102-114-B
High pressure ball valve Series BA102; Female thread; Drilled for mounting an actuator; Body, Ball 1.4571/1.4404; Seals POM/FKM; For liquids; Medium temperature -20...+100°C; Square 14mm; G 11/4"; Nominal diameter 25mm; Pressure range 0...350bar; Length 120mm; Flange ISO5211 F05
Add to Cart
Pneumatic actuator PAS1255
PAS1255 x 1.0
Pneumatic actuator PAS1255
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 125mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 88,1Nm
Add to Cart
A4/338/99 x 1.0
A4/338/99
Bolt; 1.4305; Diameter 25mm; Height of the bolt 54mm; Male square 14mm; Height of the male square 15mm; Female square 14mm; Height of the female square 15mm
