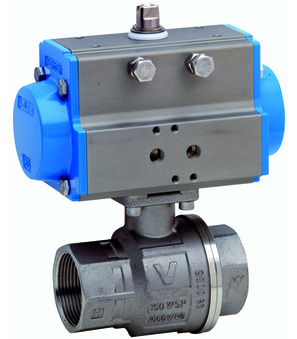

Ball valve with pneumatic actuator BA081-30-D0-A

Ball valve with pneumatic actuator BA081-30-D0-A

Ball valve with pneumatic actuator Series BA081-D0-A; ATEX II 2 G/D; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 3"; Nominal diameter 80mm; Pressure range 0…25bar; Length 180mm; Actuator PAD075

Intrastat No.: 84818081
Country of origin: Italy
Weight: 12.281 Kg
Short Itemnumber: BA08130D0A
https://www.stasto.ro/web/image/product.template/161838/image_1920?unique=bbc91d7

ball valve with pneumatic actuator series BA081-D0-A; ATEX II 2 G/D; female thread; body, ball AISI 316; seals PTFE/FKM; double acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 3"; nominal diameter 80mm; pressure range 0…25bar; length 180mm; actuator PAD075

6.195,50 lei 6195.5 RON 6.195,50 lei

Not Available For Sale

  • Female thread
  • DN
  • Length
  • Design
  • Pressure range
  • Actuator

This combination does not exist.

Availability:
Contact Us

Share

dimension
Female thread RP 3"
DN 80 mm
Length 180 mm
design
Design ATEX
pressure
Pressure range 0...25 bar
characteristics
Actuator PAD075

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Ball valve with pneumatic actuator Series BA081-D0_EN.pdf
Download

ZIP
Datové listy
1
Datový list_kulový kohout s otočným pneumatickým pohonem série BA081-D0_CS.pdf
Download

ZIP
Data Sheets
1
Datablad_Kugleventil med pneumatisk drejedrev Serie BA081-D0_DA_DK.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Kugelhahn mit Druckluftdrehantrieb Serie BA081-D0_DE.pdf
Download

ZIP
Data Sheets
1
Δελτίο δεδομένων_Σφαιρική βάνα με πνευματικό περιστροφικό ενεργοποιητή Σειρά BA081-D0_EL_GR.pdf
Download

ZIP
Data Sheets
1
Ficha técnica_Válvula de bola con actuador neumático rotativo Serie BA081-D0_ES.pdf
Download

ZIP
Data Sheets
1
Tietolehti_Palloventtiili paineilmatoimisella kääntötoimilaitteella Sarja BA081-D0_FI.pdf
Download

ZIP
Data Sheets
1
Fiche technique_Vanne à boisseau sphérique avec actionneur pneumatique rotatif Série BA081-D0_FR.pdf
Download

ZIP
Data Sheets
1
Podatkovni list_Kuglasti ventil s pneumatskim rotacijskim pogonom Serija BA081-D0_HR.pdf
Download

ZIP
Adatlapok
1
Adatlap_pneumatikus forgatóhengerrel működtetett gömbcsap sorozat BA081-D0_HU.pdf
Download

ZIP
Data Sheets
1
Scheda tecnica_Valvola a sfera con attuatore pneumatico rotativo Serie BA081-D0_IT.pdf
Download

ZIP
Data Sheets
1
Datablad_Kuleventil med pneumatisk roterende aktuator Serie BA081-D0_NB_NO.pdf
Download

ZIP
Data Sheets
1
Datasheet_Kogelkraan met pneumatische draaiaandrijving Serie BA081-D0_NL.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_zawór kulowy z napędem pneumatycznym Seria BA081-D0_PL.pdf
Download

ZIP
Data Sheets
1
Fișă de date_Robinet cu bilă cu actuator rotativ pneumatic serie BA081-D0_RO.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Krogelna pipa s pnevmatskim rotacijskim pogonom serija BA081-D0_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_kuglasti ventil sa pneumatskim aktuatorom serije BA081-D0_SRLATIN.pdf
Download

ZIP
Data Sheets
1
Datablad_Kulventil med pneumatiskt vriddon Serie BA081-D0_SV.pdf
Download
Ball valve made of stainless steel BA081-30-B-A
BA081-30-B-A x 1.0
Ball valve made of stainless steel BA081-30-B-A
Ball valve made of stainless steel Series BA081-A; ATEX II 2 G/D; Full bore; Two-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; Connection G 3"; Nominal diameter 80mm; Pressure range 0...25bar; Length 180mm
Add to Cart
Pneumatic actuator PAD075
PAD075 x 1.0
Pneumatic actuator PAD075
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 75mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 66Nm
