Ball valve with pneumatic actuator BA069-14-D0
High pressure ball valve BA230-42L-B
High pressure ball valve BA230-42L-B
1.334,70 lei
1.334,70 lei
Ball valve with pneumatic actuator BA069-14-D0-B
Ball valve with pneumatic actuator BA069-14-D0-B
1.583,50 lei
1.583,50 lei

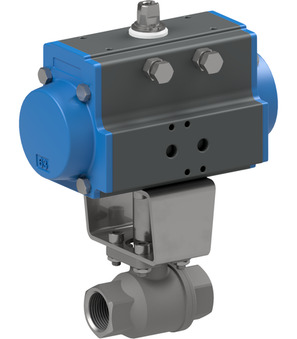

Ball valve with pneumatic actuator BA069-14-D0

Ball valve with pneumatic actuator Series BA069; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 1/4"; Nominal diameter 8mm; Pressure range 0…140bar; Length 55mm; Actuator PAD032

Intrastat No.: 84818081
Country of origin: Italy
Weight: 0.82 Kg
Short Itemnumber:BA06914D0
https://www.stasto.ro/web/image/product.template/161350/image_1920?unique=bbc91d7

ball valve with pneumatic actuator series BA069; female thread; body, ball AISI 316; seals PTFE/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 1/4"; nominal diameter 8mm; pressure range 0…140bar; length 55mm; actuator PAD032

1.307,10 lei 1307.1 RON 1.307,10 lei

Not Available For Sale

  • Female thread
  • DN
  • Length
  • Pressure range
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
Female thread RP 1/4"
DN 8 mm
Length 55 mm
pressure
Pressure range 0...140 bar
characteristics
Actuator PAD032

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Ball valve with pneumatic actuator Series BA069-D_EN.pdf
Download

ZIP
Datové listy
1
Datový list_kulový kohout s otočným pneumatickým pohonem série BA069-D_CS.pdf
Download

ZIP
Data Sheets
1
Datablad_Kugleventil med pneumatisk drejedrev Serie BA069-D_DA_DK.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Kugelhahn mit Druckluftdrehantrieb Serie BA069-D_DE.pdf
Download

ZIP
Data Sheets
1
Δελτίο δεδομένων_Σφαιρική βάνα με πνευματικό περιστροφικό ενεργοποιητή Σειρά BA069-D_EL_GR.pdf
Download

ZIP
Data Sheets
1
Ficha técnica_Válvula de bola con actuador neumático rotativo Serie BA069-D_ES.pdf
Download

ZIP
Data Sheets
1
Tietolehti_Palloventtiili paineilmatoimisella kääntötoimilaitteella Sarja BA069-D_FI.pdf
Download

ZIP
Data Sheets
1
Fiche technique_Vanne à boisseau sphérique avec actionneur pneumatique rotatif Série BA069-D_FR.pdf
Download

ZIP
Data Sheets
1
Podatkovni list_Kuglasti ventil s pneumatskim rotacijskim pogonom Serija BA069-D_HR.pdf
Download

ZIP
Adatlapok
1
Adatlap_pneumatikus forgatóhengerrel működtetett gömbcsap sorozat BA069-D_HU.pdf
Download

ZIP
Data Sheets
1
Scheda tecnica_Valvola a sfera con attuatore pneumatico rotativo Serie BA069-D_IT.pdf
Download

ZIP
Data Sheets
1
Datablad_Kuleventil med pneumatisk roterende aktuator Serie BA069-D_NB_NO.pdf
Download

ZIP
Data Sheets
1
Datasheet_Kogelkraan met pneumatische draaiaandrijving Serie BA069-D_NL.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_zawór kulowy z napędem pneumatycznym Seria BA069-D_PL.pdf
Download

ZIP
Data Sheets
1
Fișă de date_Robinet cu bilă cu actuator rotativ pneumatic serie BA069-D_RO.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Krogelna pipa s pnevmatskim rotacijskim pogonom serija BA069-D_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_kuglasti ventil sa pneumatskim aktuatorom serije BA069-D_SRLATIN.pdf
Download

ZIP
Data Sheets
1
Datablad_Kulventil med pneumatiskt vriddon Serie BA069-D_SV.pdf
Download
700000-1/4"
700000-1/4" x 1.0
700000-1/4"
Ball valve made of stainless steel; Full bore; Two-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; Connection RP 1/4"; Nominal diameter 8mm; Pressure range 0-140bar; Length 55mm
Add to Cart
Pneumatic actuator PAD032
PAD032 x 1.0
Pneumatic actuator PAD032
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 32mm; Flange ISO5211 F03; Female square 9mm; Torque at 5,5bar 8Nm
Add to Cart
RI3784 x 1.0
RI3784
Mounting bracket, F03-F03, Incl. Spacer 35x35x20mm; Incl. Mounting screws And Nuts M5
