BA069-12N-T0-3C

Name: BA069-12N-T0-3C
Brand: STASTO
SKU: BA069-12N-T0-3C
Price: 1752.4 RON
Availability: InStock

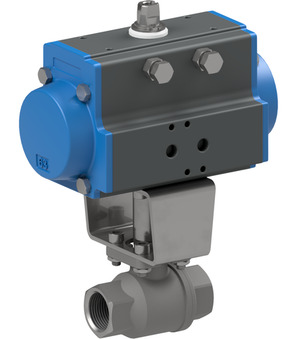

Ball valve with pneumatic actuator Series BA069-T-3C; Full bore; Two-parts type; Female thread; Body, Ball 1.4408; Seals PTFE/FKM; Medium temperature -20...+160°C; 1/2"NPT; Nominal diameter 15mm; Pressure range 0..140bar; Length 66mm; Single acting actuator; Control pressure 5,5...8bar; Actuator PAS0525-B; Safety position NO; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness

Intrastat No.: 84818081
Country of origin: Italy
Weight: 1.705 Kg
Short Itemnumber: BA06912NT03C

ball valve with pneumatic actuator series BA069-T-3C; full bore; two-parts type; female thread; body, ball AISI 316; seals PTFE/FKM; medium temperature -20...+160°C; 1/2"NPT; nominal diameter 15mm; pressure range 0..140bar; length 66mm; single acting actuator; control pressure 5,5...8bar; actuator PAS0525-B; safety position NO; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness

1.752,40 lei 1752.4 RON 1.752,40 lei

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

BA069-12N-L-3C x 1.0

BA069-12N-L-3C

Ball valve made of stainless steel Series BA069; Full bore; Two-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; 1/2"NPT; Nominal diameter 15mm; Pressure range 0...140bar; Length 66mm; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness

Add to Cart

PAS0525-B x 1.0

Pneumatic actuator PAS0525-B

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Pinion turned by 90°; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 6,2Nm

Add to Cart

RI3782 x 1.0
