BA069-10-0L

BA069-10-0L

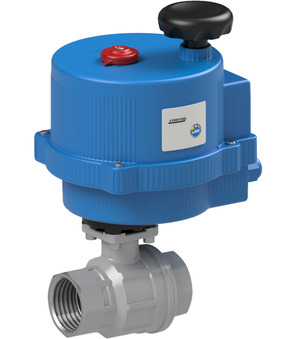

Ball valve with electrical actuator; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; ; Medium temperature -20...+160°C; RP 1"; Nominal diameter 25mm; Pressure range 0-105bar; Length 93mm; Voltage 24VAC/DC

Intrastat No.: 84818081
Country of origin: Italy
Weight: 3.4 Kg
Short Itemnumber: BA069100L
https://www.stasto.ro/web/image/product.template/125302/image_1920?unique=6a15fbd

ball valve with electrical actuator; female thread; body, ball AISI 316; seals PTFE/FKM; ; medium temperature -20...+160°C; RP 1"; nominal diameter 25mm; pressure range 0-105bar; length 93mm; voltage 24VAC/DC

3.590,40 lei 3590.4 RON 3.590,40 lei

Not Available For Sale

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0-105bar
Brand STASTO
Documents
Data sheets, drawings and CAD files
Pressure range 0-105bar
Brand STASTO

BA069-10-0L

Documents

1 Documents

Language-independent
ZIP

CAD / 3D

1
Ball valve made of stainless steel 700000-1"
700000-1" x 1.0 Pcs
Ball valve made of stainless steel 700000-1"
Ball valve made of stainless steel Series 704000, 700000; Full bore; Two-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; Connection Rp 1"; Nominal diameter 25mm; Pressure range 0-105bar; Length 93mm
Electrical actuator VB030-L
VB030-L x 1.0 Pcs
Electrical actuator VB030-L
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 30Nm; Operating time 8s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 24VAC/DC; Protection class IP67
RI3030 x 1.0 Pcs
RI3030
Mounting bracket; F05/F03-F04,11-8
