BA043-40-S0-A3M

BA043-40-S0-A3M

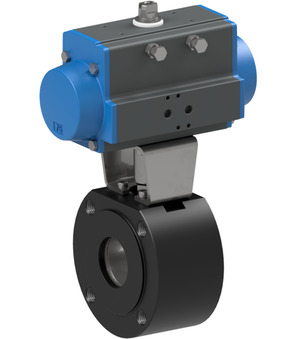

Flanged ball valve with pneumatic actuator; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C; Pressure range 0...16bar; Nominal diameter 40mm; Length 63,5mm; Actuator PAS0855; ATEX; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness; Incl. Technical valve passport RU According to TR CU 032/2013; Incl. TR CU 032/2013 (Incl. Strength calculation), TR CU 010/2011; Incl. EAC-Certificate

Intrastat No.: 84818081
Country of origin: Italy
Weight: 11.38 Kg
Short Itemnumber: BA04340S0A3M
https://www.stasto.ro/web/image/product.template/154882/image_1920?unique=3970b0b

flanged ball valve with pneumatic actuator; flange PN16; body steel; ball AISI 304; seals PTFE/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+160°C; pressure range 0...16bar; nominal diameter 40mm; length 63,5mm; actuator PAS0855; ATEX; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness; incl. technical valve passport RU according to TR CU 032/2013; incl. TR CU 032/2013 (incl. strength calculation), TR CU 010/2011; incl. EAC-certificate

3.658,20 lei 3658.2 RON 3.658,20 lei

Not Available For Sale

  • Design

This combination does not exist.

Availability:
Contact Us

Share

Design ATEX
Flanged ball valve BA043-40-L-A3M
BA043-40-L-A3M x 1.0
Flanged ball valve BA043-40-L-A3M
Flanged ball valve Series BA043-L-A3M; ATEX II 2 G/D; Flange PN16, Full bore; Body Steel; Ball 1.4301; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -20...+160°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness; Incl. Technical valve passport RU According to TR CU 032/2013; Incl. TR CU 032/2013 (Incl. Strength calculation), TR CU 010/2011; Incl. EAC-Certificate; Nominal diameter 40mm; Length 63,5mm
Add to Cart
Pneumatic actuator PAS0855-3M
PAS0855-3M x 1.0
Pneumatic actuator PAS0855-3M
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Incl. Technical valve passport RU According to TR CU 032/2013; Incl. TR CU 032/2013 (Incl. Strength calculation), TR CU 010/2011; Incl. EAC-Certificate; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 28,7Nm
