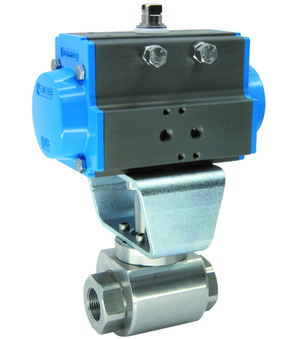

Ball valve with pneumatic actuator BA066-12-D0-A

Ball valve with pneumatic actuator BA066-12-D0-A

Ball valve with pneumatic actuator Series BA066; ATEX zone 1 and 21; Female thread; Body, Ball 1.4571; Seals PEEK/FKM; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+100°C; For liquids; G 1/2"; Nominal diameter 13mm; Pressure range 0…400bar; Length 85mm; Actuator PAD063

Intrastat No.: 84818081
Country of origin: Germany
Weight: 2.87 Kg
Short Itemnumber: BA06612D0A
https://www.stasto.ro/web/image/product.template/157922/image_1920?unique=c27975c

ball valve with pneumatic actuator series BA066; ATEX zone 1 and 21; female thread; body, ball AISI 316Ti; seals PEEK/FKM; double acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -10...+100°C; for liquids; G 1/2"; nominal diameter 13mm; pressure range 0…400bar; length 85mm; actuator PAD063

999.999,00 lei 999999.0 RON 999.999,00 lei

Not Available For Sale

  • Female thread
  • DN
  • Length
  • Design
  • Pressure range
  • Actuator

This combination does not exist.

Availability:
Contact Us

Share

dimension
Female thread G 1/2"
DN 13 mm
Length 85 mm
design
Design ATEX
pressure
Pressure range 0...400 bar
characteristics
Actuator PAD063

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Ball valve with pneumatic actuator Series BA066-D0_EN.pdf
Download

ZIP
Datové listy
1
Datový list_kulový kohout s otočným pneumatickým pohonem série BA066-D0_CS.pdf
Download

ZIP
Data Sheets
1
Datablad_Kugleventil med pneumatisk drejedrev Serie BA066-D0_DA_DK.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Kugelhahn mit Druckluftdrehantrieb Serie BA066-D0_DE.pdf
Download

ZIP
Data Sheets
1
Δελτίο δεδομένων_Σφαιρική βάνα με πνευματικό περιστροφικό ενεργοποιητή Σειρά BA066-D0_EL_GR.pdf
Download

ZIP
Data Sheets
1
Ficha técnica_Válvula de bola con actuador neumático rotativo Serie BA066-D0_ES.pdf
Download

ZIP
Data Sheets
1
Tietolehti_Palloventtiili paineilmatoimisella kääntötoimilaitteella Sarja BA066-D0_FI.pdf
Download

ZIP
Data Sheets
1
Fiche technique_Vanne à boisseau sphérique avec actionneur pneumatique rotatif Série BA066-D0_FR.pdf
Download

ZIP
Data Sheets
1
Podatkovni list_Kuglasti ventil s pneumatskim rotacijskim pogonom Serija BA066-D0_HR.pdf
Download

ZIP
Adatlapok
1
Adatlap_pneumatikus forgatóhengerrel működtetett gömbcsap sorozat BA066-D0_HU.pdf
Download

ZIP
Data Sheets
1
Scheda tecnica_Valvola a sfera con attuatore pneumatico rotativo Serie BA066-D0_IT.pdf
Download

ZIP
Data Sheets
1
Datablad_Kuleventil med pneumatisk roterende aktuator Serie BA066-D0_NB_NO.pdf
Download

ZIP
Data Sheets
1
Datasheet_Kogelkraan met pneumatische draaiaandrijving Serie BA066-D0_NL.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_zawór kulowy z napędem pneumatycznym Seria BA066-D0_PL.pdf
Download

ZIP
Data Sheets
1
Fișă de date_Robinet cu bilă cu actuator rotativ pneumatic serie BA066-D0_RO.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Krogelna pipa s pnevmatskim rotacijskim pogonom serija BA066-D0_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_kuglasti ventil sa pneumatskim aktuatorom serije BA066-D0_SRLATIN.pdf
Download

ZIP
Data Sheets
1
Datablad_Kulventil med pneumatiskt vriddon Serie BA066-D0_SV.pdf
Download
BA066-12-B-A x 1.0
High pressure ball valve BA066-12-B-A
High pressure ball valve Series BA066; ATEX zone 0 and 20; Bare shaft; Female thread; Body, Ball 1.4571; Seals PEEK/FKM; For liquids; Medium temperature -20...+100°C; Connection 1/2"; Nominal diameter 13mm; Pressure range 0…400bar; Length 85mm; Flange ISO5211 F03; Square 9mm
Add to Cart
Pneumatic actuator PAD063
PAD063 x 1.0
Pneumatic actuator PAD063
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 36Nm
Add to Cart
04806007007 x 1.0
04806007007
Mounting bridge; Zinc plated steel; Flange 1: F03/F04mm; Flange 2: F05; Height 50mm; Mounting table for RI3030
Add to Cart
A4/457/04 x 1.0
A4/457/04
Bolt; 1.4305; Diameter 20mm; Height of the bolt 47mm; Male square 14mm; Height of the male square 13mm; Female square 9mm; Height of the female square 8mm
