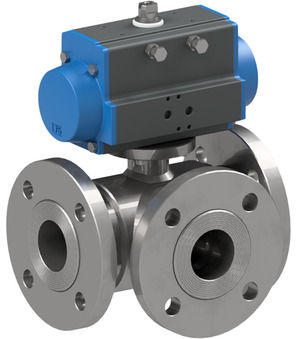

Flanged ball valve with pneumatic actuator BA055-50-S0-A3C-01

Name: Flanged ball valve with pneumatic actuator BA055-50-S0-A3C-01
Brand: STASTO
SKU: BA055-50-S0-A3C-01
Price: 14760.9 RON
Availability: InStock

flanged ball valve with pneumatic actuator series BA055, BA056; ATEX II 2 G/D T4; 3-way-type; sealing on three ports; housing AISI 316L polished; ball AISI 316L; seals PTFE/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness; FDA-certification; nominal diameter 50mm; length 220mm; pressure range 0...40bar; flange PN40; actuator PAS1155; ball L

Intrastat No.: 84818081
Country of origin: Italy
Short Itemnumber: BA05550S0A3C01

14.760,90 lei 14760.9 RON 14.760,90 lei

DN
- 50 mm
Length
- 220 mm
Flange
- PN40
Ball
- L
Design
- ATEX
Pressure range
- 0...40 bar
Actuator
- PAS1155

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	50 mm
Length	220 mm
Flange	PN40
Designs
Ball	L
design
Design	ATEX
pressure
Pressure range	0...40 bar
characteristics
Actuator	PAS1155

BA055-50-B-A3C-01 x 1.0

Flanged ball valve BA055-50-B-A3C-01

flanged ball valve series BA055, BA056-ATEX; ATEX II 2 G/D T4; bare shaft; 3-way-type; full bore; housing AISI 316L polished; ball AISI 316L; seals PTFE/FKM; sealing on three ports; medium temperature -20...+160°C; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness; FDA-certification; nominal diameter 50mm; pressure range 0...40bar; flange PN40; length 220mm; ball L; flange ISO5211 F07; square 17mm

Add to Cart

PAS1155 x 1.0

Pneumatic actuator PAS1155

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 115mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 71,1Nm
