BA055-100-D0-ABS51-C001-22-C002-31-6
BA055-100-D0

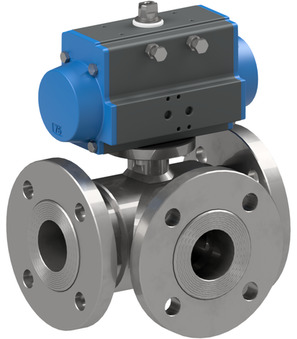

Flanged ball valve with pneumatic actuator Series BA055, BA056; 3-way-type; Sealing on three ports; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 100mm; Length 300mm; Pressure range 0…16bar; Flange PN16; Actuator PAD115; Ball L
ABS51
Mounted pilot valve Series ABS; NAMUR; Silencer; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD052-270
C001-22
Coil Type C001; Connector size 22mm; Voltage 230V/50-60Hz
C002-31-6
Connector; Connector size 22mm; Standard; Voltage 0-250VAC/DC
Country of origin: Italy
Weight: 58.06 Kg
Short Itemnumber: BA055100D0ABS51C00122C002316
BA055-100-D0
flanged ball valve with pneumatic actuator series BA055, BA056; 3-way-type; sealing on three ports; body AISI 316L polished; ball AISI 316L; seals PTFE/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 100mm; length 300mm; pressure range 0…16bar; flange PN16; actuator PAD115; ball L
ABS51
mounted pilot valve series ABS; NAMUR; silencer; standard coil C001; connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); actuator PAD052-270
C001-22
coil type C001; connector size 22mm; voltage 230V/50-60Hz
C002-31-6
connector; connector size 22mm; Standard; voltage 0-250VAC/DC
