Flanged ball valves - pneumatically operated

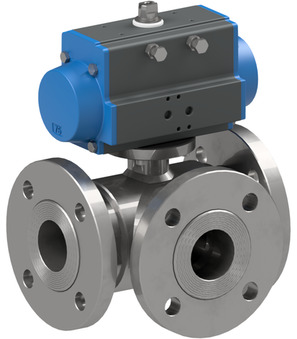

Flanged ball valve with pneumatic actuator Series BA055, BA056

3-way-type; Sealing on three ports; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C

Data sheets, CAD files and further documents are available with the respective variant.

Other series

Flanged ball valve with pneumatic actuator Series BA040-D

Flanged ball valve with pneumatic actuator Series BA040-S

Flanged ball valve with pneumatic actuator Series BADA

Flanged ball valve with pneumatic actuator Series BAEB, BAEA

Flanged ball valve with pneumatic actuator Series BAMA, BAUA

Flanged ball valve with pneumatic actuator Series BADA

Flanged ball valve with pneumatic actuator Series BAEB, BAEA

Flanged ball valve with pneumatic actuator Series BAMA, BAUA

Flanged ball valve with pneumatic actuator Series BA055, BA056

Choose a variant

129 Articles

All prices exclude tax.

Grundversion

					Availability	Price	Quantity
BA056-10-D0 Specifications Pressure range 0...40 bar Brand STASTO	10 mm	120 mm	PN40	T	See availability	3.509,30 lei	Quantity Details Documents — BA056-10-D0
BA055-10-D0 Specifications Pressure range 0...40 bar Brand STASTO	10 mm	120 mm	PN40	L	See availability	3.509,30 lei	Quantity Details Documents — BA055-10-D0
BA056-15-D0 Specifications Pressure range 0...40 bar Brand STASTO	15 mm	130 mm	PN40	T	See availability	4.235,50 lei	Quantity Details Documents — BA056-15-D0
BA055-15-D0 Specifications Pressure range 0...40 bar Brand STASTO	15 mm	130 mm	PN40	L	See availability	4.235,50 lei	Quantity Details Documents — BA055-15-D0
BA056-20-D0 Specifications Pressure range 0...40 bar Brand STASTO	20 mm	140 mm	PN40	T	See availability	5.027,10 lei	Quantity Details Documents — BA056-20-D0
BA055-20-D0 Specifications Pressure range 0...40 bar Brand STASTO	20 mm	140 mm	PN40	L	See availability	5.027,10 lei	Quantity Details Documents — BA055-20-D0
BA056-25-D0 Specifications Pressure range 0...40 bar Brand STASTO	25 mm	150 mm	PN40	T	See availability	5.772,70 lei	Quantity Details Documents — BA056-25-D0
BA055-25-D0 Specifications Pressure range 0...40 bar Brand STASTO	25 mm	150 mm	PN40	L	See availability	5.772,70 lei	Quantity Details Documents — BA055-25-D0
BA056-32-D0 Specifications Pressure range 0...40 bar Brand STASTO	32 mm	180 mm	PN40	T	See availability	8.803,60 lei	Quantity Details Documents — BA056-32-D0
BA055-32-D0 Specifications Pressure range 0...40 bar Brand STASTO	32 mm	180 mm	PN40	L	See availability	8.803,60 lei	Quantity Details Documents — BA055-32-D0
BA056-40-D0 Specifications Pressure range 0...40 bar Brand STASTO	40 mm	200 mm	PN40	T	See availability	10.960,90 lei	Quantity Details Documents — BA056-40-D0
BA055-40-D0 Specifications Pressure range 0...40 bar Brand STASTO	40 mm	200 mm	PN40	L	See availability	10.960,90 lei	Quantity Details Documents — BA055-40-D0
BA056-50-D0 Specifications Pressure range 0...40 bar Brand STASTO	50 mm	220 mm	PN40	T	See availability	13.516,50 lei	Quantity Details Documents — BA056-50-D0
BA055-50-D0 Specifications Pressure range 0...40 bar Brand STASTO	50 mm	220 mm	PN40	L	See availability	13.516,50 lei	Quantity Details Documents — BA055-50-D0
BA056-65-D0 Specifications Pressure range 0...16 bar Brand STASTO	65 mm	240 mm	PN16	T	See availability	16.880,50 lei	Quantity Details Documents — BA056-65-D0
BA055-65-D0 Specifications Pressure range 0...16 bar Brand STASTO	65 mm	240 mm	PN16	L	See availability	16.880,50 lei	Quantity Details Documents — BA055-65-D0
BA056-80-D0 Specifications Pressure range 0...16 bar Brand STASTO	80 mm	260 mm	PN16	T	See availability	26.950,90 lei	Quantity Details Documents — BA056-80-D0
BA055-80-D0 Specifications Pressure range 0...16 bar Brand STASTO	80 mm	260 mm	PN16	L	See availability	26.950,90 lei	Quantity Details Documents — BA055-80-D0
BA056-100-D0 Specifications Pressure range 0...16 bar Brand STASTO	100 mm	300 mm	PN16	T	See availability	39.728,00 lei	Quantity Details Documents — BA056-100-D0
BA055-100-D0 Specifications Pressure range 0...16 bar Brand STASTO	100 mm	300 mm	PN16	L	See availability	39.728,00 lei	Quantity Details Documents — BA055-100-D0

Varianten

					Availability	Price	Quantity
BA056-15-D0-ABS51-C001-22-C002-31-6 Specifications Ball T Pressure range 0...40 bar Design Standard Brand STASTO	230V/50-60Hz	15 mm	130 mm	PN40	See availability	4.985,80 lei	Quantity Details Documents — BA056-15-D0-ABS51-C001-22-C002-31-6
BA056-15-D0-ABS51-C001-22-C002-31-LV-1 Specifications Ball T Pressure range 0...40 bar Design With integrated LED-yellow and VDR Brand STASTO	230V/50-60Hz	15 mm	130 mm	PN40	See availability	5.012,80 lei	Quantity Details Documents — BA056-15-D0-ABS51-C001-22-C002-31-LV-1
BA056-15-D0-ABS51-C001-22-C002-31-LVCV20-1 Specifications Ball T Pressure range 0...40 bar Design With integrated LED-yellow, VDR and PVC-cable (2 m) Brand STASTO	230V/50-60Hz	15 mm	130 mm	PN40	See availability	5.059,20 lei	Quantity Details Documents — BA056-15-D0-ABS51-C001-22-C002-31-LVCV20-1
BA056-15-D0-ABS51-C001-03-C002-31-6 Specifications Ball T Pressure range 0...40 bar Design Standard Brand STASTO	24VDC / 48V/50-60Hz	15 mm	130 mm	PN40	See availability	4.985,80 lei	Quantity Details Documents — BA056-15-D0-ABS51-C001-03-C002-31-6
BA056-15-D0-ABS51-C001-03-C002-31-LV-2 Specifications Ball T Pressure range 0...40 bar Design With integrated LED-yellow and VDR Brand STASTO	24VDC / 48V/50-60Hz	15 mm	130 mm	PN40	See availability	5.013,30 lei	Quantity Details Documents — BA056-15-D0-ABS51-C001-03-C002-31-LV-2
BA056-15-D0-ABS51-C001-03-C002-31-LVCV20-2 Specifications Ball T Pressure range 0...40 bar Design With integrated LED-yellow, VDR and PVC-cable (2 m) Brand STASTO	24VDC / 48V/50-60Hz	15 mm	130 mm	PN40	See availability	5.053,60 lei	Quantity Details Documents — BA056-15-D0-ABS51-C001-03-C002-31-LVCV20-2
BA055-15-D0-ABS51-C001-22-C002-31-6 Specifications Ball L Pressure range 0...40 bar Design Standard Brand STASTO	230V/50-60Hz	15 mm	130 mm	PN40	See availability	4.985,80 lei	Quantity Details Documents — BA055-15-D0-ABS51-C001-22-C002-31-6
BA055-15-D0-ABS51-C001-22-C002-31-LV-1 Specifications Ball L Pressure range 0...40 bar Design With integrated LED-yellow and VDR Brand STASTO	230V/50-60Hz	15 mm	130 mm	PN40	See availability	5.012,80 lei	Quantity Details Documents — BA055-15-D0-ABS51-C001-22-C002-31-LV-1
BA055-15-D0-ABS51-C001-22-C002-31-LVCV20-1 Specifications Ball L Pressure range 0...40 bar Design With integrated LED-yellow, VDR and PVC-cable (2 m) Brand STASTO	230V/50-60Hz	15 mm	130 mm	PN40	See availability	5.059,20 lei	Quantity Details Documents — BA055-15-D0-ABS51-C001-22-C002-31-LVCV20-1
BA055-15-D0-ABS51-C001-03-C002-31-6 Specifications Ball L Pressure range 0...40 bar Design Standard Brand STASTO	24VDC / 48V/50-60Hz	15 mm	130 mm	PN40	See availability	4.985,80 lei	Quantity Details Documents — BA055-15-D0-ABS51-C001-03-C002-31-6
BA055-15-D0-ABS51-C001-03-C002-31-LV-2 Specifications Ball L Pressure range 0...40 bar Design With integrated LED-yellow and VDR Brand STASTO	24VDC / 48V/50-60Hz	15 mm	130 mm	PN40	See availability	5.013,30 lei	Quantity Details Documents — BA055-15-D0-ABS51-C001-03-C002-31-LV-2
BA055-15-D0-ABS51-C001-03-C002-31-LVCV20-2 Specifications Ball L Pressure range 0...40 bar Design With integrated LED-yellow, VDR and PVC-cable (2 m) Brand STASTO	24VDC / 48V/50-60Hz	15 mm	130 mm	PN40	See availability	5.053,60 lei	Quantity Details Documents — BA055-15-D0-ABS51-C001-03-C002-31-LVCV20-2
BA056-20-D0-ABS51-C001-22-C002-31-6 Specifications Ball T Pressure range 0...40 bar Design Standard Brand STASTO	230V/50-60Hz	20 mm	140 mm	PN40	See availability	5.777,30 lei	Quantity Details Documents — BA056-20-D0-ABS51-C001-22-C002-31-6
BA056-20-D0-ABS51-C001-22-C002-31-LV-1 Specifications Ball T Pressure range 0...40 bar Design With integrated LED-yellow and VDR Brand STASTO	230V/50-60Hz	20 mm	140 mm	PN40	See availability	5.804,30 lei	Quantity Details Documents — BA056-20-D0-ABS51-C001-22-C002-31-LV-1
BA056-20-D0-ABS51-C001-22-C002-31-LVCV20-1 Specifications Ball T Pressure range 0...40 bar Design With integrated LED-yellow, VDR and PVC-cable (2 m) Brand STASTO	230V/50-60Hz	20 mm	140 mm	PN40	See availability	5.850,70 lei	Quantity Details Documents — BA056-20-D0-ABS51-C001-22-C002-31-LVCV20-1
BA056-20-D0-ABS51-C001-03-C002-31-6 Specifications Ball T Pressure range 0...40 bar Design Standard Brand STASTO	24VDC / 48V/50-60Hz	20 mm	140 mm	PN40	See availability	5.777,30 lei	Quantity Details Documents — BA056-20-D0-ABS51-C001-03-C002-31-6
BA056-20-D0-ABS51-C001-03-C002-31-LV-2 Specifications Ball T Pressure range 0...40 bar Design With integrated LED-yellow and VDR Brand STASTO	24VDC / 48V/50-60Hz	20 mm	140 mm	PN40	See availability	5.804,80 lei	Quantity Details Documents — BA056-20-D0-ABS51-C001-03-C002-31-LV-2
BA056-20-D0-ABS51-C001-03-C002-31-LVCV20-2 Specifications Ball T Pressure range 0...40 bar Design With integrated LED-yellow, VDR and PVC-cable (2 m) Brand STASTO	24VDC / 48V/50-60Hz	20 mm	140 mm	PN40	See availability	5.845,10 lei	Quantity Details Documents — BA056-20-D0-ABS51-C001-03-C002-31-LVCV20-2
BA055-20-D0-ABS51-C001-22-C002-31-6 Specifications Ball L Pressure range 0...40 bar Design Standard Brand STASTO	230V/50-60Hz	20 mm	140 mm	PN40	See availability	5.777,30 lei	Quantity Details Documents — BA055-20-D0-ABS51-C001-22-C002-31-6
BA055-20-D0-ABS51-C001-22-C002-31-LV-1 Specifications Ball L Pressure range 0...40 bar Design With integrated LED-yellow and VDR Brand STASTO	230V/50-60Hz	20 mm	140 mm	PN40	See availability	5.804,30 lei	Quantity Details Documents — BA055-20-D0-ABS51-C001-22-C002-31-LV-1
