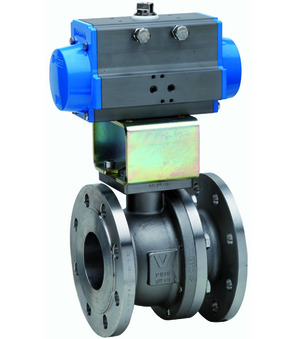

Flanged ball valve with pneumatic actuator BA051-65-S0-A0

Flanged ball valve with pneumatic actuator BA051-65-S0-A0

Flanged ball valve with pneumatic actuator Series BA051; Fire-Safe/Antistatik According to ATEX/TA−Luft; Length According to EN558−1R27; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Free of oil and grease for oxygen; Nominal diameter 65mm; Pressure range 0...16bar; Flange PN16; Length 170mm; Actuator PAS1605

Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 42.09 Kg
Short Itemnumber: BA05165S0A0
https://www.stasto.ro/web/image/product.template/181671/image_1920?unique=7d94123

flanged ball valve with pneumatic actuator series BA051; Fire-Safe/Antistatik according to ATEX/TA−Luft; length according to EN558−1R27; body, ball AISI 316; seals PTFE/Graphoil/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; free of oil and grease for oxygen; nominal diameter 65mm; pressure range 0...16bar; flange PN16; length 170mm; actuator PAS1605

999.999,00 lei 999999.0 RON 999.999,00 lei

Not Available For Sale

excl. tax
  • Valve interface Namur
  • DN
  • Length
  • Flange
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16 bar
DN 65 mm
Flange PN16
Length 170 mm
All specifications (5)
Documents
Data sheets, drawings and CAD files
Pressure range 0...16 bar
DN 65 mm
Flange PN16
Length 170 mm
Design ATEX

BA051-65-S0-A0

Documents

1 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1
Danish / Dansk
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1
Greek / Ελληνικά
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
Spanish / Español
ZIP

Data Sheets

1
Finnish / Suomi
ZIP

Data Sheets

1
French / Français
ZIP

Data Sheets

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1
Italian / Italiano
ZIP

Data Sheets

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1
Dutch / Nederlands
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1
Romanian / română
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
Swedish / Svenska
ZIP

Data Sheets

1
Flanged ball valve BA051-65-LLD-A0
BA051-65-LLD-A0 x 1.0 Pcs
Flanged ball valve BA051-65-LLD-A0
Flanged ball valve Series BA051-A0; ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to EN558−1R27; Full bore; Body, Ball 1.4408; Seals;PTFE/Graphoil/FKM; Medium temperature -20...+60°C; With locking device; Free of oil and grease for oxygen; Nominal diameter 65mm; Pressure range 0...16bar; Flange PN16; Length 170mm
Pneumatic actuator PAS1605
PAS1605 x 1.0 Pcs
Pneumatic actuator PAS1605
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 160mm; Flange ISO5211 F10/F12; Female square 27mm; Torque at 5,5bar 202Nm
RI3010 x 1.0 Pcs
RI3010
Mounting bracket; F10-F07; Bolt 22-14
