Flanged ball valve with pneumatic actuator BA051-125-S0-A

Price.

26.696,50 lei
Flanged ball valve with pneumatic actuator Series BA051-S0 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Other materiales - A03
  5. Flanged ball valve with pneumatic actuator Series BA051-S0
  6. BA051-125-S0-A

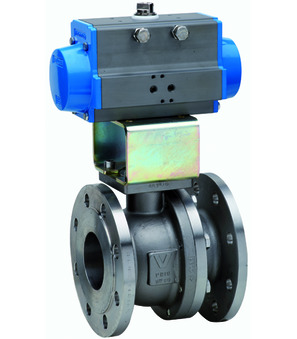

Flanged ball valve with pneumatic actuator BA051-125-S0-A
Flanged ball valve with pneumatic actuator BA595-100-S0-A-01
Flanged ball valve with pneumatic actuator BA595-100-S0-A-01
14.578,30 lei
14.578,30 lei
Flanged ball valve with pneumatic actuator BA051-150-S0-A
Flanged ball valve with pneumatic actuator BA051-150-S0-A
38.427,00 lei
38.427,00 lei

Flanged ball valve with pneumatic actuator BA051-125-S0-A

Flanged ball valve with pneumatic actuator Series BA051; Fire-Safe/Antistatik According to ATEX/TA−Luft; Length According to EN558−1R27; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 125mm; Pressure range 0...16bar; Flange PN16; Length 325mm; Actuator PAS1605

Intrastat No.: 84818081
Country of origin: Italy
Weight: 80.0 Kg
Short Itemnumber:BA051125S0A
https://www.stasto.ro/web/image/product.template/137891/image_1920?unique=e5e4a60

flanged ball valve with pneumatic actuator series BA051; Fire-Safe/Antistatik according to ATEX/TA−Luft; length according to EN558−1R27; body, ball AISI 316; seals PTFE/Graphoil/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 125mm; pressure range 0...16bar; flange PN16; length 325mm; actuator PAS1605

26.696,50 lei 26696.5 RON 26.696,50 lei

Not Available For Sale

  • Valve interface Namur
  • DN
  • Length
  • Flange
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
DN 125 mm
Length 325 mm
Flange PN16
design
Design ATEX
pressure
Pressure range 0...16 bar
characteristics
Actuator PAS1605

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Flanged ball valve with pneumatic actuator Series BA051-S0_EN.pdf
Download

ZIP
Datové listy
1
Datový list_kulový kohout - přírubový, s otočným pneumatickým pohonem série BA051-S0_CS.pdf
Download

ZIP
Data Sheets
1
Datablad_Flangekugleventil med pneumatisk drejedrev Serie BA051-S0_DA_DK.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Flanschkugelhahn mit Druckluftdrehantrieb Serie BA051-S0_DE.pdf
Download

ZIP
Data Sheets
1
Δελτίο δεδομένων_Φλαντζωτή σφαιρική βάνα με πνευματικό περιστροφικό ενεργοποιητή Σειρά BA051-S0_EL_GR.pdf
Download

ZIP
Data Sheets
1
Ficha técnica_Válvula de bola con bridas con actuador neumático rotativo Serie BA051-S0_ES.pdf
Download

ZIP
Data Sheets
1
Tietolehti_Laippakuulaventtiili paineilmatoimisella kääntötoimilaitteella Sarja BA051-S0_FI.pdf
Download

ZIP
Data Sheets
1
Fiche technique_Vanne à boisseau sphérique à brides avec actionneur pneumatique rotatif Série BA051-S0_FR.pdf
Download

ZIP
Data Sheets
1
Podatkovni list_Prirubnički kuglasti ventil s pneumatskim rotacijskim pogonom Serija BA051-S0_HR.pdf
Download

ZIP
Adatlapok
1
Adatlap_pneumatikus forgatóhengerrel működtetett karimás gömbcsap sorozat BA051-S0_HU.pdf
Download

ZIP
Data Sheets
1
Scheda tecnica_Valvola a sfera flangiata con attuatore pneumatico rotativo Serie BA051-S0_IT.pdf
Download

ZIP
Data Sheets
1
Datablad_Flenset kuleventil med pneumatisk dreieaktuator Serie BA051-S0_NB_NO.pdf
Download

ZIP
Data Sheets
1
Datasheet_Flenskogelkraan met pneumatische draaiaandrijving Serie BA051-S0_NL.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_zawór kulowy kołnierzowy z napędem pneumatycznym Seria BA051-S0_PL.pdf
Download

ZIP
Data Sheets
1
Fișă de date_Robinet cu bilă cu flanșă cu actuator rotativ pneumatic serie BA051-S0_RO.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Prirobnična krogelna pipa s pnevmatskim rotacijskim pogonom serija BA051-S0_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_kuglasti ventil sa prirubnicom i pneumatskim aktuatorom serije BA051-S0_SRLATIN.pdf
Download

ZIP
Data Sheets
1
Datablad_Flänskulventil med pneumatiskt vriddon Serie BA051-S0_SV.pdf
Download
Flanged ball valve 760000-125
760000-125 x 1.0
Flanged ball valve 760000-125
Flanged ball valve Series 760000; ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to EN558−1R27; Full bore; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Medium temperature -20...+160°C; With locking device; Nominal diameter 125mm; Pressure range 0-16bar; Flange PN16; Length 325mm
Add to Cart
Pneumatic actuator PAS1605
PAS1605 x 1.0
Pneumatic actuator PAS1605
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 160mm; Flange ISO5211 F10/F12; Female square 27mm; Torque at 5,5bar 202Nm
Add to Cart
