BA049-32-S0-A

Name: BA049-32-S0-A
Brand: STASTO
SKU: BA049-32-S0-A
Price: 999999.0 RON
Availability: InStock

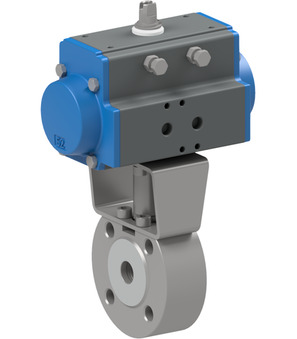

Flanged ball valve with pneumatic actuator; Flange PN16; ATEX According to Directive 2014/34/UE; Antistatic; Body, Ball 1.4401; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 32mm; Length 54mm; Actuator PAS0855; ATEX II 2G/D c T6

Intrastat No.: 84818081
Country of origin: Italy
Weight: 8.51 Kg
Short Itemnumber: BA04932S0A

flanged ball valve with pneumatic actuator; flange PN16; ATEX according to directive 2014/34/UE; antistatic; body, ball AISI 316; seals PTFE/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...16bar; nominal diameter 32mm; length 54mm; actuator PAS0855; ATEX II 2G/D c T6

999.999,00 lei 999999.0 RON 999.999,00 lei

Design
- ATEX

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

Design

ATEX

BA049-32-L-A x 1.0

Flanged ball valve BA049-32-L-A

Flanged ball valve Series BA049-A; ATEX II 2 G/D; Flange PN16, Full bore; Body, Ball 1.4401; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -20...+160°C; Nominal diameter 32mm; Length 54mm

Add to Cart

PAS0855 x 1.0

Pneumatic actuator PAS0855

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 28,7Nm

Add to Cart

RI3030 x 1.0
