BA048-100-S0

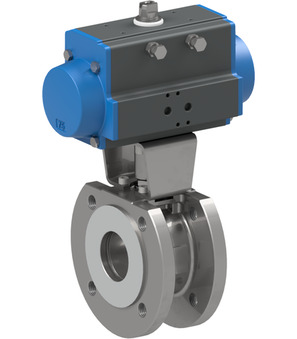

Flanged ball valve with pneumatic actuator Series BA048-S0; Flange PN16; Body, Ball 1.4301; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 100mm; Length 152mm; Actuator PAS1255
Intrastat No.: 84818081
Country of origin: Italy
Weight: 37.1 Kg
Short Itemnumber: BA048100S0
Country of origin: Italy
Weight: 37.1 Kg
Short Itemnumber: BA048100S0
flanged ball valve with pneumatic actuator series BA049-S0; flange PN16; body, ball AISI 316; seals PTFE/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...16bar; nominal diameter 100mm; length 152mm; actuator PAS1255
| dimension | |
|---|---|
| DN | 100 mm |
| Length | 152 mm |
| pressure | |
| Pressure range | 0...16 bar |
| characteristics | |
| Actuator | PAS1255 |
No spare parts are available for this product.
