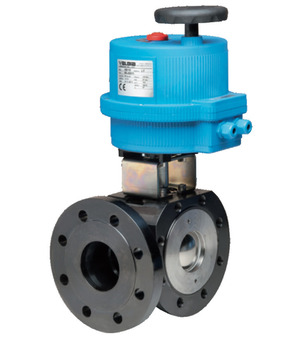

Ball valve with electrical actuator BA046-100-0H

Ball valve with electrical actuator BA046-100-0H

Ball valve with electrical actuator Series BA046, BA047; 3-way-type; Sealing on two sides; Pressure inlet just in front; Reduced bore; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -10...+160°C; Nominal diameter 100mm; DN ball 76mm; Length 152mm; Operating time 27s; Voltage 100-240VAC; Ball L

Intrastat No.: 84818081
Country of origin: Italy
Weight: 46.19 Kg
Short Itemnumber: BA0461000H
https://www.stasto.ro/web/image/product.template/124309/image_1920?unique=ca0e10d

ball valve with electrical actuator series BA046, BA047; 3-way-type; sealing on two sides; pressure inlet just in front; reduced bore; flange PN16; body steel; ball AISI 304; seals PTFE/FKM; pressure range 0...16bar; medium temperature -10...+160°C; nominal diameter 100mm; DN ball 76mm; length 152mm; operating time 27s; voltage 100-240VAC; ball L

15.127,10 lei 15127.1 RON 15.127,10 lei

Not Available For Sale

excl. tax
  • DN
  • Length
  • DN ball
  • Ball
  • Voltage
  • Operating time

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16bar
DN 100 mm
DN ball 76 mm
Length 152 mm
All specifications (7)
Pressure range 0...16bar
DN 100 mm
DN ball 76 mm
Length 152 mm
Operating time 27 s
Voltage 100-240VAC
Ball L
Flanged ball valve 776000-100
776000-100 x 1.0 Pcs
Flanged ball valve 776000-100
Flanged ball valve Series 776000, 776001; 3-way-type; Sealing on two sides; Pressure inlet just in front; Reduced bore; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -10...+160°C; Nominal diameter 100mm; DN ball 76mm; Length 152mm; Ball L
Electrical actuator VB190-H
VB190-H x 1.0 Pcs
Electrical actuator VB190-H
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 190Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 100-240VAC; Protection class IP67
RI3004 x 1.0 Pcs
RI3004
Mounting bracket For Ball valve; F10/F07-F10; Bolt 17-18
