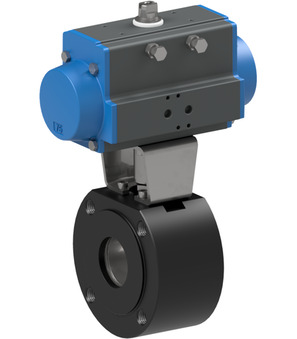

Flanged ball valve with pneumatic actuator BA045-40-S0

Flanged ball valve with pneumatic actuator BA045-40-S0

Flanged ball valve with pneumatic actuator Series BA045; Flange PN40; Body Steel; Ball 1.4301; Seals PTFE-reinforced/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...40bar; Nominal diameter 40mm; Length 63,5mm; Actuator PAS1005

Intrastat No.: 84818081
Country of origin: Italy
Weight: 13.72 Kg
Short Itemnumber: BA04540S0
https://www.stasto.ro/web/image/product.template/211571/image_1920?unique=98b22d8

flanged ball valve with pneumatic actuator series BA045; flange PN40; body steel; ball AISI 304; seals PTFE-reinforced/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...40bar; nominal diameter 40mm; length 63,5mm; actuator PAS1005

4.111,60 lei 4111.6 RON 4.111,60 lei

Not Available For Sale

excl. tax
  • DN
  • Length
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...40bar
DN 40 mm
Length 64 mm
Pressure range 0...40bar
DN 40 mm
Length 64 mm
Flanged ball valve 720008-40
720008-40 x 1.0 Pcs
Flanged ball valve 720008-40
Flanged ball valve Series 720008; Flange PN40, Full bore; Body Steel; Ball 1.4301; Seals PTFE-reinforced/FKM; Pressure range 0...40bar; Medium temperature -20...+160°C; Nominal diameter 40mm; Length 63,5mm
Pneumatic actuator PAS1005
PAS1005 x 1.0 Pcs
Pneumatic actuator PAS1005
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 42,3Nm
RI3009 x 1.0 Pcs
RI3009
Mounting bracket; F07/F05-F05; Bolt 17-10
Accessory Products
EB0X01
EB0X01
Material of case
Plastic
Brand
STASTO
EB0X02
EB0X02
Material of case
Plastic
Brand
STASTO
EB0X04YA
EB0X04YA
Material of case
Aluminum
Brand
STASTO
EB0X04YA-ULCSA-01
EB0X04YA-ULCSA-01
Material of case
Aluminum
Brand
STASTO
EB0X05
EB0X05
Design
ATEX
Material of case
Plastic
Brand
STASTO
RI4607
RI4607
Diameter
100 mm
RI4621
RI4621
Diameter
100 mm
RI4649
RI4649
Diameter
100 mm
