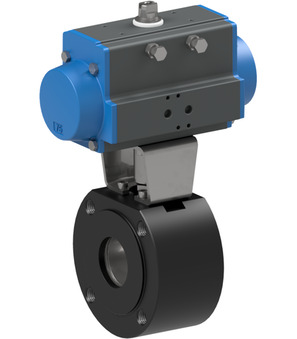

Flanged ball valve with pneumatic actuator BA045-20-S0

Price.

3.041,60 lei
Flanged ball valve with pneumatic actuator Series BA045-S Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Other materiales - A03
  5. Flanged ball valve with pneumatic actuator Series BA045-S
  6. BA045-20-S0
Flanged ball valve with pneumatic actuator BA045-20-S0
  2. STASTO Store
  3. Flanged ball valve with pneumatic actuator BA045-20-S0
Flanged ball valve with pneumatic actuator BA045-15-S0
Flanged ball valve with pneumatic actuator BA045-15-S0
2.366,90 lei
2.366,90 lei
Flanged ball valve with pneumatic actuator BA045-25-S0
Flanged ball valve with pneumatic actuator BA045-25-S0
3.233,90 lei
3.233,90 lei

Flanged ball valve with pneumatic actuator BA045-20-S0

Flanged ball valve with pneumatic actuator Series BA045; Flange PN40; Body Steel; Ball 1.4301; PTFE-reinforced/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...40bar; Nominal diameter 20mm; Length 40mm; Actuator PAS0855

Intrastat No.: 84818081
Country of origin: Italy
Weight: 7.01 Kg
Short Itemnumber:BA04520S0
https://www.stasto.ro/web/image/product.template/122837/image_1920?unique=e5e4a60

flanged ball valve with pneumatic actuator series BA045; flange PN40; body steel; ball AISI 304; PTFE-reinforced/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...40bar; nominal diameter 20mm; length 40mm; actuator PAS0855

3.041,60 lei 3041.6 RON 3.041,60 lei

Not Available For Sale

  • Valve interface Namur
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
DN 20 mm
Length 40 mm
characteristics
Actuator PAS0855
Flanged ball valve BA045-20-L
BA045-20-L x 1.0
Flanged ball valve BA045-20-L
Flanged ball valve Series BA045; Flange PN40, Full bore; Body Steel; Ball 1.4301; Seals PTFE-reinforced/FKM; Pressure range 0...40bar; Medium temperature -20...+160°C; Nominal diameter 20mm; DN ball 40mm
Add to Cart
Pneumatic actuator PAS0855
PAS0855 x 1.0
Pneumatic actuator PAS0855
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 28,7Nm
Add to Cart
Accessories
dimension
DN 20 mm
Length 40 mm
characteristics
Actuator PAS0855
Flanged ball valve BA045-20-L
BA045-20-L x 1.0
Flanged ball valve BA045-20-L
Flanged ball valve Series BA045; Flange PN40, Full bore; Body Steel; Ball 1.4301; Seals PTFE-reinforced/FKM; Pressure range 0...40bar; Medium temperature -20...+160°C; Nominal diameter 20mm; DN ball 40mm
Add to Cart
Pneumatic actuator PAS0855
PAS0855 x 1.0
Pneumatic actuator PAS0855
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 28,7Nm
Add to Cart
