Flanged ball valve with pneumatic actuator Series BA044-S0-A Store

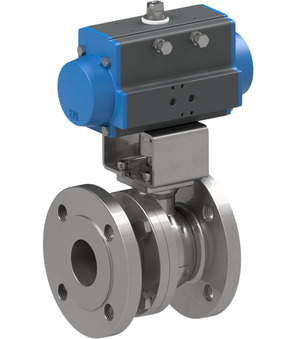

Flanged ball valve with pneumatic actuator BA044-50-S1-A

Name: Flanged ball valve with pneumatic actuator BA044-50-S1-A
Brand: STASTO
SKU: BA044-50-S1-A
Price: 7019.1 RON
Availability: InStock

flanged ball valve with pneumatic actuator series BA044; fire-safe; ATEX/TA-Luft; length according to EN558−1R27; body zinc plated steel; ball AISI 304; seals PTFE/Graphoil/FKM; single acting actuator; control pressure 3...8bar; medium temperature -10...+160°C; nominal diameter 50mm; pressure range 0-40bar; flange PN40; length 150mm; actuator PAS1251

Intrastat No.: 84818081
Country of origin: Italy
Weight: 26.21 Kg
Short Itemnumber:BA04450S1A

7.019,10 lei 7019.1 RON 7.019,10 lei

DN
- 50 mm
Length
- 150 mm
Flange
- PN40
Design
- ATEX
Pressure range
- 0...40 bar

This combination does not exist.

Availability:

Adaugă în coș

Specifications
Spare Parts

dimension
DN	50 mm
Length	150 mm
Flange	PN40
design
Design	ATEX
pressure
Pressure range	0...40 bar

760001-50 x 1.0

Flanged ball valve 760001-50

Flanged ball valve Series 760001; ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to EN558−1R27; Full bore; Body Zinc plated steel; Ball 1.4301; Seals PTFE/Graphoil/FKM; Medium temperature -10...+160°C; With locking device; Nominal diameter 50mm; Pressure range 0-40bar; Flange PN40; Length 150mm

Add to Cart

PAS1251 x 1.0

Pneumatic actuator PAS1251

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 125mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 53,1Nm

Add to Cart

RI3522 x 1.0
