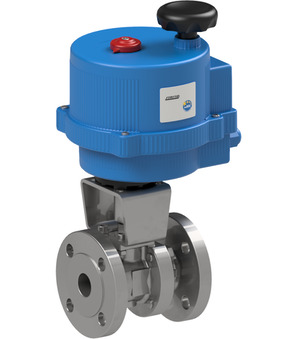

BA044-125-0H-U

Flanged ball valve Series 760001; ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to EN558−1R27; Full bore; Body Zinc plated steel; Ball 1.4301; Seals PTFE/Graphoil/FKM; Medium temperature -10...+160°C; With locking device; Nominal diameter 125mm; Pressure range 0-16bar; Flange PN16; Length 325mm

Electrical actuator; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 270Nm; Operating time 50s; Flange ISO5211 F07/F10-star 22mm; Voltage 100-240VAC; Protection class IP67; UL-Approval

Mounting bracket; F10/F07-F10; Bolt 22-18
