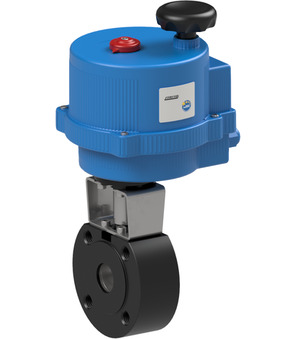

Flanged ball valve with electrical actuator BA043-80-0H-01

Flanged ball valve with electrical actuator BA043-80-0H-01

flanged ball valve with electrical actuator series 8E007; flange PN16; body steel; ball AISI 304; seals PTFE/FKM; medium temperature -10...+160°C; DN 80mm; pressure range 0-16bar; length 122mm; operating time 27s; voltage 100-240VAC; Additional limit switches for central position 45°

Flanschkugelhahn mit Elektroantrieb Serie 8E007
Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Short Itemnumber: BA043800H01
https://www.stasto.ro/web/image/product.template/232842/image_1920?unique=b428625

flanged ball valve with electrical actuator series 8E007; flange PN16; body steel; ball AISI 304; seals PTFE/FKM; medium temperature -10...+160°C; DN 80mm; pressure range 0-16bar; length 122mm; operating time 27s; voltage 100-240VAC; Additional limit switches for central position 45°

7.740,30 lei 7740.3 RON 7.740,30 lei

Not Available For Sale

excl. tax
  • DN
  • Length
  • Voltage
  • Pressure range
  • Actuator
  • Operating time

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16 bar
DN 80 mm
Length 122 mm
Operating time 27 s
All specifications (5)
Documents
Data sheets, drawings and CAD files
Pressure range 0...16 bar
DN 80 mm
Length 122 mm
Operating time 27 s
Voltage 100-240VAC

BA043-80-0H-01

Documents

1 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1
Danish / Dansk
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1
Greek / Ελληνικά
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
Spanish / Español
ZIP

Data Sheets

1
Finnish / Suomi
ZIP

Data Sheets

1
French / Français
ZIP

Data Sheets

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1
Italian / Italiano
ZIP

Data Sheets

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1
Dutch / Nederlands
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1
Romanian / română
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
Swedish / Svenska
ZIP

Data Sheets

1
Flanged ball valve 722000-80
722000-80 x 1.0 Pcs
Flanged ball valve 722000-80
Flanged ball valve Series 722000; Flange PN16, Full bore; Body Steel; Ball 1.4301; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -20...+160°C; Nominal diameter 80mm; Length 122mm
Electrical actuator VB110-0F27-Q17-01
VB110-0F27-Q17-01 x 1.0 Pcs
Electrical actuator VB110-0F27-Q17-01
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 110Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 100-240VAC; Protection class IP67; Additional limit switches For Central position 45°
RI3003 x 1.0 Pcs
RI3003
Mounting bracket; F07/F07; 17-14
Accessory Products
Flanged ball valve 722000-80
722000-80
Flanged ball valve 722000-80
DN
80 mm
Flange
PN16
Pressure range
0...16 bar
