Flanged ball valve with pneumatic actuator Series BA043-A Store

Flanged ball valve with pneumatic actuator BA043-65-D0-A

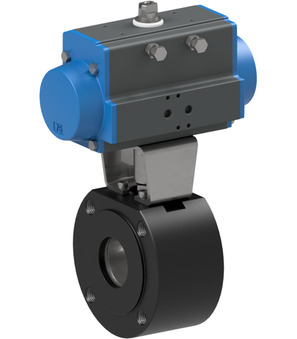

Name: Flanged ball valve with pneumatic actuator BA043-65-D0-A
Brand: STASTO
SKU: BA043-65-D0-A
Price: 4786.3 RON
Availability: InStock

Flanged ball valve with pneumatic actuator Series BA043-A; ATEX II 2 G/D; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 65mm; Length 103mm; Actuator PAD085

Intrastat No.: 84818081
Country of origin: Italy
Weight: 20.18 Kg
Short Itemnumber:BA04365D0A

flanged ball valve with pneumatic actuator series BA043-A; ATEX II 2 G/D; flange PN16; body steel; ball AISI 304; seals PTFE/FKM; double acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...16bar; nominal diameter 65mm; length 103mm; actuator PAD085

4.786,30 lei 4786.3 RON 4.786,30 lei

DN
- 65 mm
Length
- 103 mm
Design
- ATEX
Actuator
- PAD085

This combination does not exist.

Availability:

Add to cart

dimension
DN	65 mm
Length	103 mm
design
Design	ATEX
characteristics
Actuator	PAD085

Data sheets, Instructions, 3D-files and Certificates...

In your language

ZIP

Declarations of Conformity

Druckluftdrehantrieb_EN.pdf

Download

BA043-65-L-A x 1.0

Flanged ball valve BA043-65-L-A

Flanged ball valve Series BA043-L-A; ATEX II 2 G/D; Flange PN16, Full bore; Body Steel; Ball 1.4301; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -20...+160°C; Nominal diameter 65mm; Length 103mm

Add to Cart

PAD085 x 1.0

Pneumatic actuator PAD085

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 96Nm

Add to Cart
