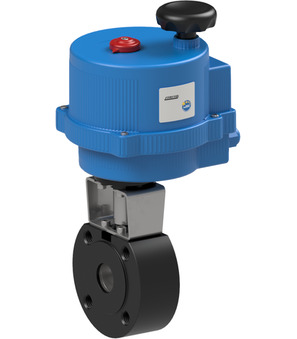

Flanged ball valve with electrical actuator BA043-65-0L-01

Name: Flanged ball valve with electrical actuator BA043-65-0L-01
Brand: STASTO
SKU: BA043-65-0L-01
Price: 999999.0 RON
Availability: InStock

Flanged ball valve with electrical actuator; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; DN 65mm; Pressure range 0-16bar; Length 103mm; Control ball V 30...60°; Operating time 27s; Voltage 24VAC/DC

Intrastat No.: 84818081
Country of origin: Italy
Weight: 5.48 Kg
Short Itemnumber: BA043650L01

flanged ball valve with electrical actuator; flange PN16; body steel; ball AISI 304; seals PTFE/FKM; medium temperature -10...+160°C; DN 65mm; pressure range 0-16bar; length 103mm; Control ball V 30...60°; operating time 27s; voltage 24VAC/DC

999.999,00 lei 999999.0 RON 999.999,00 lei

DN
- 65 mm
Length
- 103 mm
Voltage
- 24VAC/DC
Pressure range
- 0...16 bar
Actuator
- VB110L
Operating time
- 27 s

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	65 mm
Length	103 mm
Electrical key figures
Voltage	24VAC/DC
pressure
Pressure range	0...16 bar
characteristics
Actuator	VB110L
Operating time	27 s

BA043-65-L-02 x 1.0

Flanged ball valve BA043-65-L-02

Flanged ball valve; Flange PN16, Full bore; Body Steel; Ball 1.4301; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -20...+160°C; Nominal diameter 65mm; Length 103mm; Control ball V 30...60°

Add to Cart

VB110-L x 1.0

Electrical actuator VB110-L

Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 110Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 24VAC/DC; Protection class IP67

Add to Cart

RI3003 x 1.0
