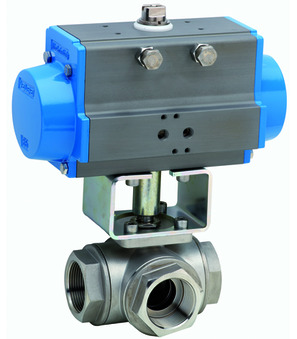

Ball valve with pneumatic actuator BA037-20-S0

Ball valve with pneumatic actuator BA037-20-S0

Ball valve with pneumatic actuator Series BA037, BA038; 3-way-type; Sealing on three ports; Body, Ball 1.4401; Seals PTFE; Single acting actuator; Reduced bore; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...64bar; G 2"; Nominal diameter 38mm; Length 149mm; Actuator PAS1155; Ball L

Intrastat No.: 84818081
Country of origin: China
Weight: 18.21 Kg
Short Itemnumber: BA03720S0
https://www.stasto.ro/web/image/product.template/152712/image_1920?unique=bcfc56d

ball valve with pneumatic actuator series BA037, BA038; 3-way-type; sealing on three ports; body, ball AISI 316; seals PTFE; single acting actuator; reduced bore; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...64bar; G 2"; nominal diameter 38mm; length 149mm; actuator PAS1155; ball L

999.999,00 lei 999999.0 RON 999.999,00 lei

Not Available For Sale

excl. tax
  • Valve interface Namur
  • Female thread
  • DN
  • Length
  • Connector size
  • Ball
  • Voltage
  • Coil
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...64bar
Female thread G 2"
DN 38 mm
Length 149 mm
All specifications (5)
Documents
Data sheets, drawings and CAD files
Pressure range 0...64bar
Female thread G 2"
DN 38 mm
Length 149 mm
Ball L

BA037-20-S0

Documents

1 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1
Danish / Dansk
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1
Greek / Ελληνικά
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
Spanish / Español
ZIP

Data Sheets

1
Finnish / Suomi
ZIP

Data Sheets

1
French / Français
ZIP

Data Sheets

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1
Italian / Italiano
ZIP

Data Sheets

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1
Dutch / Nederlands
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1
Romanian / română
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
Swedish / Svenska
ZIP

Data Sheets

1
Ball valve made of stainless steel BA037-20-L
BA037-20-L x 1.0 Pcs
Ball valve made of stainless steel BA037-20-L
Ball valve made of stainless steel Series BA037, BA038; 3-way-type; Female thread; Reduced bore; Body 1.4408; Ball 1.4401; Seals PTFE; Sealing on three ports; Medium temperature -20...+160°C;; G 2"; Nominal diameter 38mm; Pressure range 0...64bar; Length 149mm; Ball L
Pneumatic actuator PAS1155
PAS1155 x 1.0 Pcs
Pneumatic actuator PAS1155
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 115mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 71,1Nm
RI3765 x 1.0 Pcs
RI3765
Mounting bracket; F07-F07; Bolt 14-17
