BA036-20-T0

BA036-20-T0

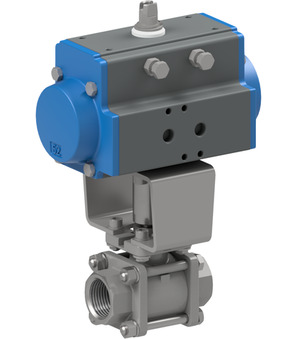

Ball valve with pneumatic actuator; For steam; Female thread; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Single acting actuator; Control pressure 5,5...8bar; Pressure range Steam 0...15bar; Medium temperature -20...+198°C; RP 2"; Nominal diameter 50mm; Length 136mm; Actuator PAS1005; Safety position Open

Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 8.19 Kg
Short Itemnumber: BA03620T0
https://www.stasto.ro/web/image/product.template/167438/image_1920?unique=8f6eabc

ball valve with pneumatic actuator; for steam; female thread; body, ball AISI 316; seals PTFE-reinforced/FKM; single acting actuator; control pressure 5,5...8bar; pressure range steam 0...15bar; medium temperature -20...+198°C; RP 2"; nominal diameter 50mm; length 136mm; actuator PAS1005; safety position open

4.659,90 lei 4659.9 RON 4.659,90 lei

Not Available For Sale

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range Steam 0...15bar
Brand STASTO
Pressure range Steam 0...15bar
Brand STASTO
Ball valve made of stainless steel BA036-20-L
BA036-20-L x 1.0 Pcs
Ball valve made of stainless steel BA036-20-L
Ball valve made of stainless steel Series BA036; For steam; Full bore; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Pressure range Steam 0...14bar; Medium temperature -20...+198°C; RP 2"; Nominal diameter 50mm; Length 136mm
PAS1005-B x 1.0 Pcs
PAS1005-B
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Pinion turned by 90°; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 42,3Nm
RI3034 x 1.0 Pcs
RI3034
Mounting bracket; F07/F05-F05; Bolt 17-10
