Ball valve with electrical actuator Series BA036 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Other materiales - A03
  5. Ball valve with electrical actuator Series BA036
  6. BA036-12-0H

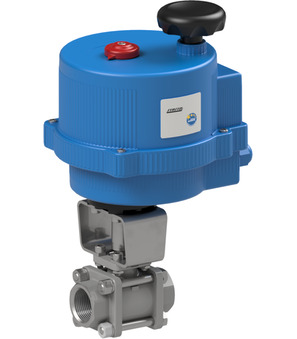

Ball valve with electrical actuator BA036-12-0H

Ball valve with electrical actuator BA036-12-0H

Ball valve with electrical actuator Series BA036; For steam; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Pressure range Steam 0...15bar; Medium temperature -20...+198°C; RP 1/2"; DN 15mm; Length 65mm; Operating time 10s; Voltage 100…240VAC

Intrastat No.: 84818081
Country of origin: Italy
Weight: 2.073 Kg
Short Itemnumber: BA036120H
https://www.stasto.ro/web/image/product.template/131720/image_1920?unique=bbc91d7

ball valve with electrical actuator series BA036; for steam; three-parts type; female thread; body, ball AISI 316; seals PTFE-reinforced/FKM; pressure range steam 0...15bar; medium temperature -20...+198°C; RP 1/2"; DN 15mm; length 65mm; operating time 10s; voltage 100…240VAC

2.851,40 lei 2851.4 RON 2.851,40 lei

Not Available For Sale

  • Female thread
  • DN
  • Length
  • Voltage
  • Pressure range
  • Actuator
  • Operating time

This combination does not exist.

Availability:
Contact Us

Share

dimension
Female thread RP 1/2"
DN 15 mm
Length 65 mm
Electrical key figures
Voltage 100-240VAC
pressure
Pressure range 0...15 bar
characteristics
Actuator VB015H
Operating time 10 s
Ball valve made of stainless steel 710060-1/2"
710060-1/2" x 1.0
Ball valve made of stainless steel 710060-1/2"
Ball valve made of stainless steel Series 710060; For steam; Full bore; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Pressure range Steam 0...15bar; Medium temperature -20...+198°C; RP 1/2"; Nominal diameter 15mm; Length 65mm
Add to Cart
Electrical actuator VB015-H
VB015-H x 1.0
Electrical actuator VB015-H
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 15Nm; Operating time 10s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 100-240VAC; Protection class IP65
Add to Cart
