Ball valve with pneumatic actuator Series BA036-S0-A Store

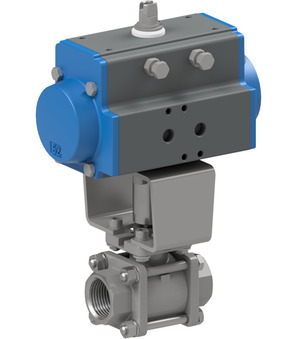

Ball valve with pneumatic actuator BA036-10-S0-A

Name: Ball valve with pneumatic actuator BA036-10-S0-A
Brand: STASTO
SKU: BA036-10-S0-A
Price: 999999.0 RON
Availability: InStock

Ball valve with pneumatic actuator Series BA036-S0-A; For steam; ATEX II 2 G/D; Female thread; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Pressure range Steam 0...14bar; Medium temperature -20...+198°C; RP 1"; Nominal diameter 25mm; Length 92mm; Actuator PAS0635

Intrastat No.: 84818081
Country of origin: Italy
Weight: 3.51 Kg
Short Itemnumber: BA03610S0A

ball valve with pneumatic actuator series BA036-S0-A; for steam; ATEX II 2 G/D; female thread; body, ball AISI 316; seals PTFE-reinforced/FKM; single acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; pressure range steam 0...14bar; medium temperature -20...+198°C; RP 1"; nominal diameter 25mm; length 92mm; actuator PAS0635

999.999,00 lei 999999.0 RON 999.999,00 lei

Female thread
- RP 1"
DN
- 25 mm
Length
- 92 mm
Design
- ATEX
Actuator
- PAS0635

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
Female thread	RP 1"
DN	25 mm
Length	92 mm
design
Design	ATEX
characteristics
Actuator	PAS0635

BA036-10-L-A x 1.0

Ball valve made of stainless steel BA036-10-L-A

Ball valve made of stainless steel Series BA036; For steam; ATEX II 2 G/D; Full bore; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Pressure range Steam 0...14bar; Medium temperature -20...198°C; RP 1"; Nominal diameter 25mm; Length 92mm

Add to Cart

PAS0635 x 1.0

Pneumatic actuator PAS0635

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 10,6Nm

Add to Cart

RI3033 x 1.0
